1. Seats

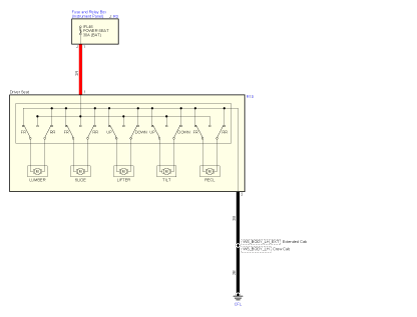

Refer to "LHD Seats (Power Seat)" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Seats (Power Seat)

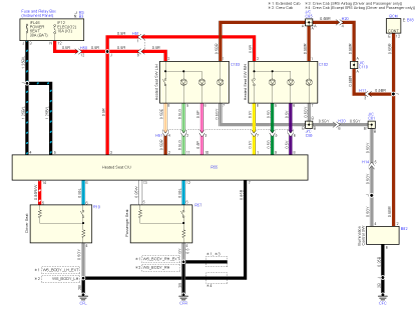

Refer to "LHD Seats (Heated Seat)" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Seats (Heated Seat)
Refer to "RHD Seats" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Seats
