Contents included in service information

Removal
Includes the removal procedure when repairing parts, devices, etc.

Installation
Includes the installation procedure when repairing parts, devices, etc.

Disassembly
Includes the disassembly procedure when overhauling a unit, assembly part, etc.

Assembly
Includes the assembly procedure when overhauling a unit, assembly part, etc.

Inspection
Includes inspection items for parts requiring inspection to ensure continued performance of parts, devices, etc.
Values are listed for parts whose standard values, setting values, and use conditions have been determined.

Cleaning
Includes the cleaning procedure for parts, devices, etc.

Preparation
Includes the preparatory procedure necessary before removing parts, devices, etc.

Adjustment
Includes the adjustment procedure if adjustment to the setting values or standard values is necessary when performing assembly or installation.

Measurement
Includes the measurement procedure for determining if the installation position of parts is correct, etc.

Drain
Includes the draining procedure for oil, etc.

Refill
Includes the refilling procedure for oil, etc.

Air removal
Includes the air removal procedure when air removal is necessary after changing oil, etc.

Writing
Includes the writing procedure necessary when replacing the ECM or supply pump.

Precaution
Includes the maintenance precautions specific to each item.

Disconnection
Includes the disconnection procedures for wiring, piping, etc.

Connection
Includes the connection procedures for wiring, piping, etc.

Setting
Includes the setting procedure necessary when replacing the ECM, etc.

Replacement
Includes the procedure for replacing parts, changing oil, etc.

Prioritized DTC
Includes DTCs which should be prioritized for each DTC code.

Diagnosis
Includes the diagnostic procedure for troubleshooting symptoms.
DTCs are listed in order of priority.

Repair verification
Includes the procedure for verifying resolution of the symptom by using numerical values, etc., other than the verification that DTCs are cleared.

Functional description
Includes the detailed functional description related to the functional inspection.

Symptom description
Includes the detailed symptom descriptions related to a diagnosis by symptom.

DTC description
Includes the circuit description related to DTCs.

Condition for setting
Includes information related to conditions for setting DTCs.

Action taken when set
Includes the information related to the control actions taken by the ECU, etc., when DTCs are set.

Items related to ETM
Items related to the ETM are described in the instructions on how to view the wiring diagram.

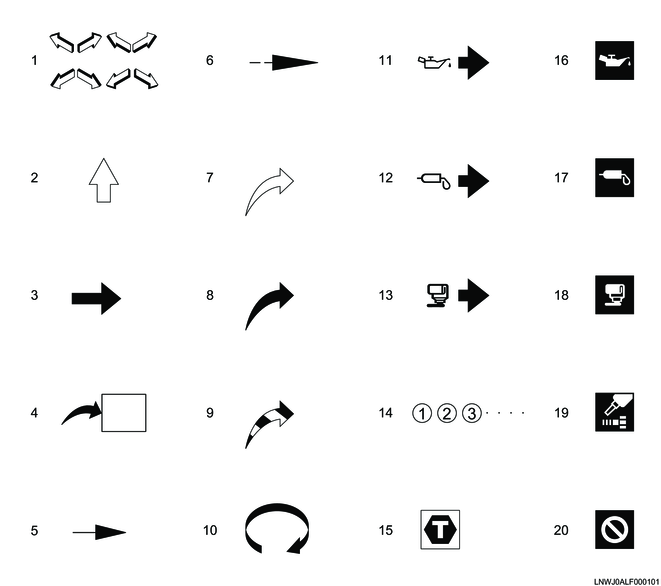

Legend
