Oil filter element removal (4JJ3 with DPD)

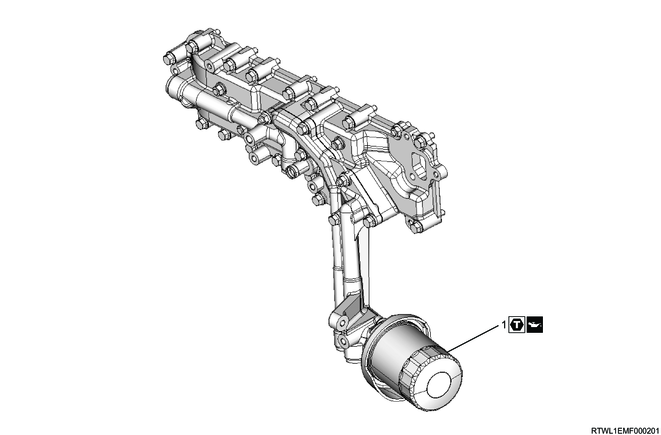

Part name

Tightening torque

1: 19.6 N・m { 2.0 kgf・m / 14 lb・ft }

1. Preliminary procedures

1) Open the engine hood.

2) Raise the vehicle.

Refer to "9.Body, Cab, Accessories 9G.Hood, Fenders, Doors underguard removal".

1) Remove the oil filter element from the oil filter bracket using the special tool.

SST: 5-8840-0203-0 - oil filter wrench

Legend
