Parking brake lever removal

1. Component views

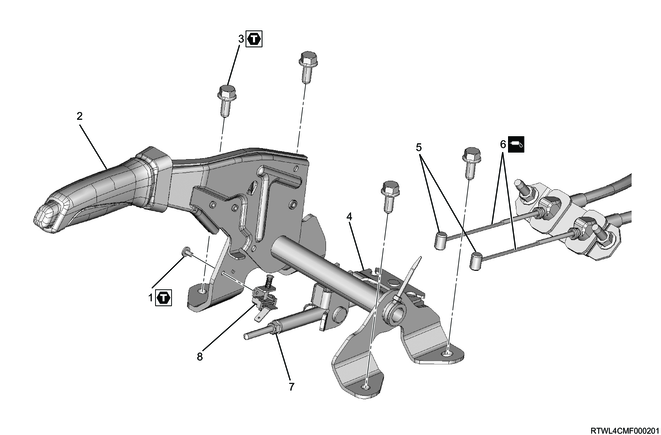

Parking brake lever (Base grade console specifications (RHD models (LHD models are opposite)))

Part name

  1. Bolt
  2. Parking brake lever
  3. Bolt
  4. Equalizer
  5. T-end
  6. Parking brake cable
  7. Adjust nut
  8. Parking brake switch

Tightening torque

1: 1.18 to 1.76 N⋅m {0.120 to 0.180 kgf⋅m / 10.4 to 15.6 lb⋅in}

3: 11.0 to 20.0 N⋅m {1.12 to 2.04 kgf⋅m / 8.11 to 14.8 lb⋅ft}

Parking brake lever (Except base grade console specifications (RHD models (LHD models are opposite)))

Part name

  1. Bolt
  2. Parking brake lever
  3. Bolt
  4. Equalizer
  5. T-end
  6. Parking brake cable
  7. Adjust nut
  8. Parking brake switch

Tightening torque

1: 1.18 to 1.76 N⋅m {0.120 to 0.180 kgf⋅m / 10.4 to 15.6 lb⋅in}

3: 11.0 to 20.0 N⋅m {1.12 to 2.04 kgf⋅m / 8.11 to 14.8 lb⋅ft}

2. Preliminary and post procedures

1. Preliminary procedures

1) Open the engine hood.

2) Disconnect the battery cable from the battery negative terminal.

Caution

  • After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
  • If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
  • If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.

3. Console box removal

4. Parking brake switch removal

1) Loosen the adjust nut using a wrench.

2) Remove the screw from the parking brake lever assembly.

3) Remove the parking brake switch from the parking brake lever.

Base grade console specifications (RHD models (LHD models are opposite))

Legend

  1. Parking brake lever
  2. Bolt
  3. Equalizer
  4. T-end
  5. Parking brake cable
  6. Adjust nut
  7. Parking brake switch
  8. Screw

Except base grade console specifications (RHD models (LHD models are opposite))

Legend

  1. Parking brake lever
  2. Bolt
  3. Equalizer
  4. T-end
  5. Parking brake cable
  6. Adjust nut
  7. Parking brake switch
  8. Screw

5. Parking brake cable disconnect

1. Parking brake cable disconnection precautions

Caution

  • Do not twist or bend the cable.

Operation will be insufficient if the cable is damaged.

2. Disconnection from parking brake lever

1) Disconnect the T-end of the parking brake cable from the equalizer.

Base grade console specifications (RHD models (LHD models are opposite))

Legend

  1. Parking brake lever
  2. Bolt
  3. Equalizer
  4. T-end
  5. Parking brake cable
  6. Adjust nut
  7. Parking brake switch
  8. Screw

Except base grade console specifications (RHD models (LHD models are opposite))

Legend

  1. Parking brake lever
  2. Bolt
  3. Equalizer
  4. T-end
  5. Parking brake cable
  6. Adjust nut
  7. Parking brake switch
  8. Screw

2) Remove the retainer from the floor.

6. Parking brake lever removal

1) Remove the parking brake lever from the floor.
