Oil filter element installation (RZ4E-TC)

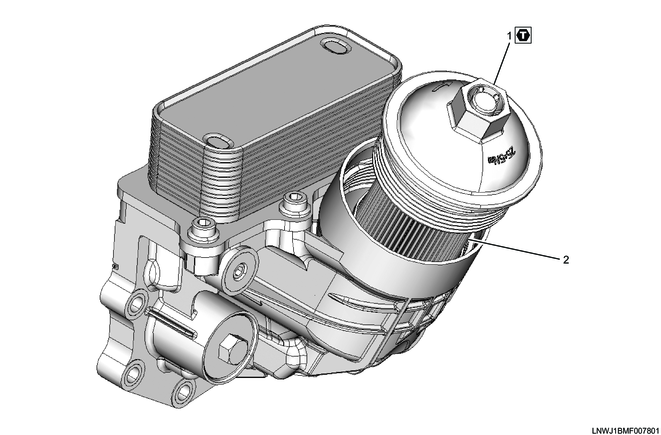

1. Component views

Oil filter element

Part name

  1. Oil filter cap
  2. Oil filter element

Tightening torque

1: 25 N・m { 2.5 kgf・m / 18 lb・ft }

2. Oil filter element installation

1) Install the oil filter element and O-ring to the cap.

Caution

  • Do not reuse the O-ring.

Legend

  1. Cap
  2. O-ring
  3. Oil filter element

2) Install the cap and oil filter element to the oil filter.

Tightening torque: 25 N・m { 2.5 kgf・m / 18 lb・ft }

3) Connect the harness clip to the bracket.

Legend

  1. Harness clip
  2. Bracket
  3. Oil filter

3. Preliminary and post procedures

1. Post procedures

1) Close the engine hood.
