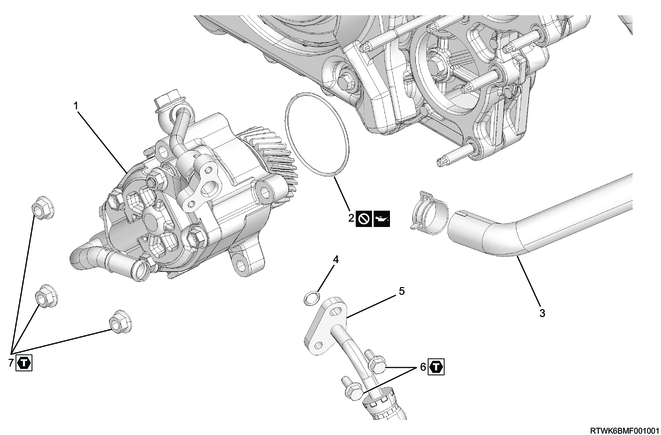

1. Component views
Power steering oil pump (4JJ3 engine models)
Part name
- Power steering oil pump
- O-ring
- Suction hose
- O-ring
- Flexible hose
- Bolt
- Nut
Tightening torque
6: 8.0 N・m { 0.8 kgf・m / 71 lb・in }
7: 25 N・m { 2.5 kgf・m / 18 lb・ft }
2. Preliminary and post procedures
1. Preliminary procedures
1) Open the engine hood.
2) Raise the vehicle.
3. Underguard removal
1. Models with front and rear underguards (long type)
1) Remove the rear underguard (long type) from the frame.
2) Remove the front underguard from the frame.
Legend
- Front underguard
- Rear underguard (long type)
- Bolt
- Clip
2. Models with front and rear underguards (short type)
1) Remove the rear underguard (short type) from the frame.
2) Remove the front underguard from the frame.
Legend
- Front underguard
- Rear underguard (short type)
- Bolt
- Clip
3. Models with front and rear underguards and oil pan guard.
1) Remove the oil pan guard from the frame.
2) Remove the rear underguard from the frame.
3) Remove the front underguard from the frame.
Models with hydraulic power steering
Legend
- Front underguard
- Rear underguard
- Oil pan guard
- Bolt
- Clip
4. Power steering fluid drain
1) Disconnect the suction hose from the suction pipe.
4JJ3 engine models
Legend
- Suction hose
Note
- Place a container under the power steering oil pump so as not to spill power steering fluid.
2) Disconnect the flexible hose from the outlet port of the power steering oil pump.
Caution
- Seal the pipes, hoses, and ports to prevent the intrusion of foreign material.
5. Power steering oil pump (4JJ3) removal
Caution
- Seal the pipes, hoses, and ports to prevent the intrusion of foreign material.
1) Remove the power steering oil pump from the timing gear case.
Legend
- Power steering oil pump
2) Remove the O-ring from the power steering oil pump.
