1. Rearview camera installation

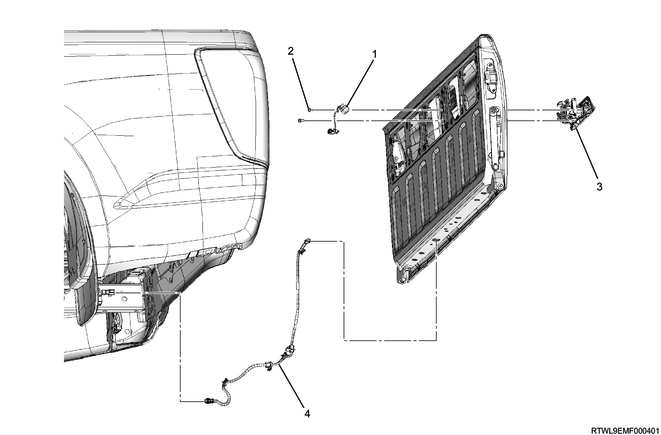

1) Install the rearview camera cable to the tail gate and body.
Legend
- Rearview camera
- Bolt
- Outside handle
- Rear camera cable
2) Install the rearview camera to the tail gate.
Tightening torque: 9.0 N・m { 0.9 kgf・m / 80 lb・in }
Legend
- Tail gate
- Rearview camera
- Bolt
- Connector
3) Connect the connector to the rearview camera.
2. Tail gate cover installation
1) Install the tailgate cover to the tailgate.
3. Preliminary and post procedures
1. Post procedures
1) Connect the battery cable to the battery negative terminal.
2) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.
Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".
3) Close the engine hood.
