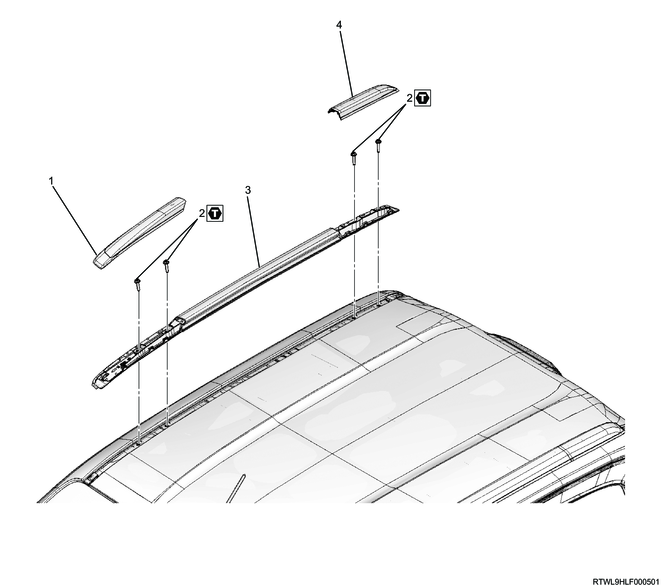

1. Component views
Roof rail
Part name
- Roof rail cover (Front side)
- Bolt
- Roof rail
- Roof rail cover (Rear side)
Tightening torque
2: 27 N・m { 2.7 kgf・m / 20 lb・ft }
2. Roof rail installation
1) Install the roof rail to the roof.
Caution
- Do not reuse the bolt, seal tape, or sponge.
Tightening torque: 27 N・m { 2.7 kgf・m / 20 lb・ft }
Legend
- Roof rail
3. Roof rail cover installation
1) Install the roof rail cover (front side) to the roof rail.
Caution
- Push the rear side claws into the roof rail, then install the roof rail.
Legend
- Roof rail cover (Front side)
- Roof rail
2) Install the roof rail cover (rear side) to the roof rail.
Caution
- Push the front side claws into the roof rail, then install to the roof rail.
Legend
- Roof rail cover (Rear side)
- Roof rail
