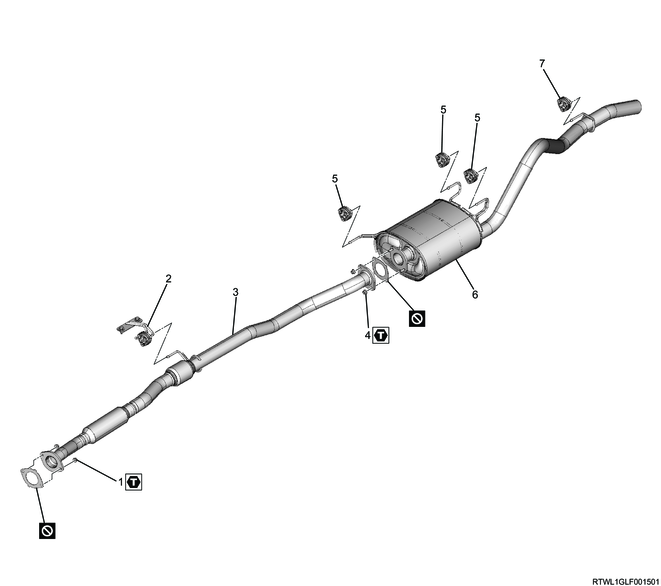

Exhaust pipe installation (4JJ3 without DPD)

Part name

Tightening torque

1: 67 N・m { 6.8 kgf・m / 49 lb・ft }

4: 43 N・m { 4.4 kgf・m / 32 lb・ft }

Part name

Tightening torque

1: 67 N・m { 6.8 kgf・m / 49 lb・ft }

4: 43 N・m { 4.4 kgf・m / 32 lb・ft }

1) Install the front exhaust pipe and gasket to the catalytic converter.

Tightening torque: 67 N・m { 6.8 kgf・m / 49 lb・ft }

2) Install the front hanger rubber to the front exhaust pipe.

3) Install the silencer hanger rubber to the silencer.

4) Install the silencer and gasket to the front exhaust pipe.

Tightening torque: 43 N・m { 4.4 kgf・m / 32 lb・ft }

5) Install the rear hanger rubber to the silencer.

1) Install the cross member to the frame.

Tightening torque: 51 N・m { 5.2 kgf・m / 38 lb・ft }

Legend

1. Post procedures

1) Lower the vehicle.
