1. Component views

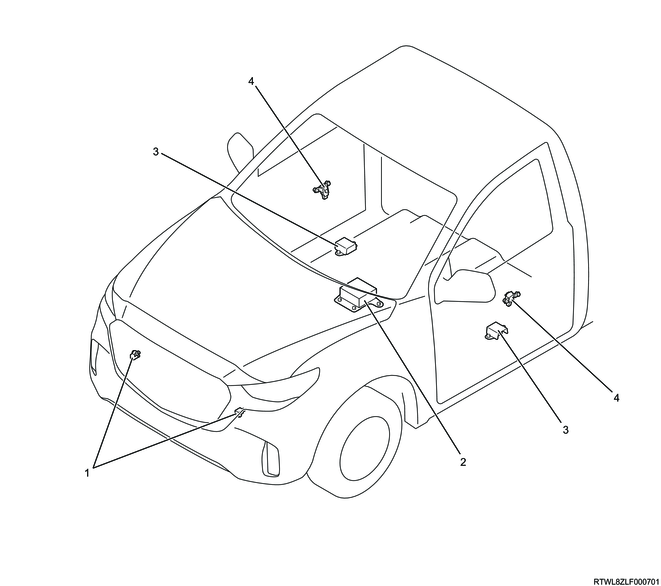

Regular cab
Part name
- Front airbag sensor
- SRS control unit
- Floor side airbag sensor (Models with side airbags)
- Door side airbag sensor (Models with side airbags)

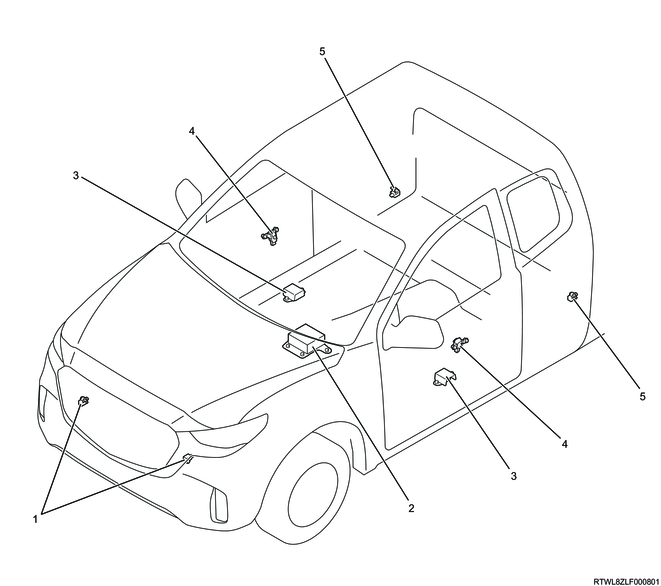

Crew cab
Part name
- Front airbag sensor
- SRS control unit
- Floor side airbag sensor (Models with side airbags)
- Door side airbag sensor (Models with side airbags)
- Rear side airbag sensor (Models with side airbags)

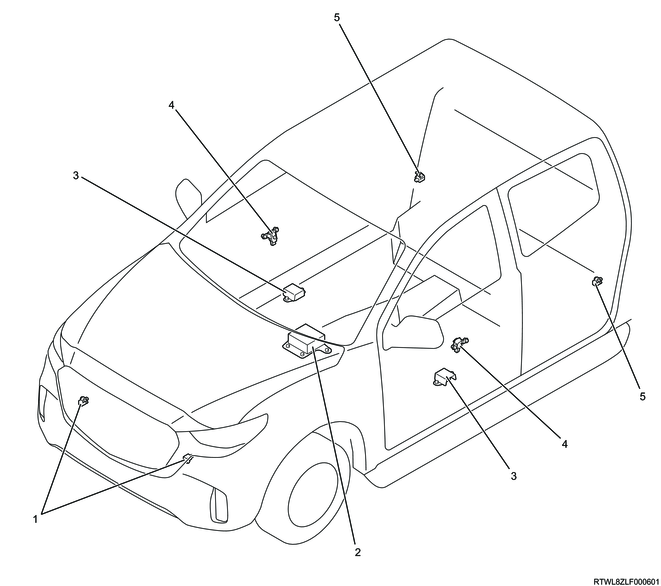

Extend cab
Part name
- Front airbag sensor
- SRS control unit
- Floor side airbag sensor (Models with side airbags)
- Door side airbag sensor (Models with side airbags)
- Rear side airbag sensor (Models with side airbags)
2. Door side airbag sensor installation
1) Install the door side airbag sensor to the front door.
Tightening torque: 8.0 N・m { 0.8 kgf・m / 71 lb・in }
Legend
- Door side airbag sensor
2) Connect the connector to the door side airbag sensor.
3. Front door trim pad installation
1) Connect the door lock cable to the inside lever.
2) Install the front door trim pad to the front door.
3) Tighten the screws, and install the cover and garnish.
Tightening torque: 2.0 N・m { 0.2 kgf・m / 18 lb・in }
Models with power windows
Legend
- Clip position
- Cover
- Garnish
- Screw
4. Door mirror cover installation
1) Install the door mirror cover to the front door.
Legend
- Clip
- Door mirror cover
5. Front door power window switch installation
1) Connect the connector to the front door power window switch.
2) Install the front door power window switch to the front door trim pad.
3) Install the armrest to the front door trim pad.
For Australia
Legend
- Armrest
Except for Australia
Legend
- Armrest
6. SRS airbag setting
1. SRS reactivation
Warning
- Never use SRS parts from other vehicles or models.
- Make sure to check the part numbers and use the SRS components intended for the target vehicle.
1) Set the ignition switch to LOCK and remove the key.
Note
- For models with the passive entry and start system, turn the power mode OFF.
2) Make sure that the connectors of the SRS components (SRS airbag, SRS control unit, seat belt with pretensioner, SRS coil, etc.) are fully connected.
3) Install the SRS fuse to the fuse relay box, and connect the battery cable to the negative terminal of the battery.
4) Turn ON the ignition switch and verify that the SRS airbag warning light turns OFF after illuminating for 6 seconds.
Caution
- If the SRS airbag warning light does not operate properly, perform Diagnostic system check - SRS controls.
5) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.
Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".
