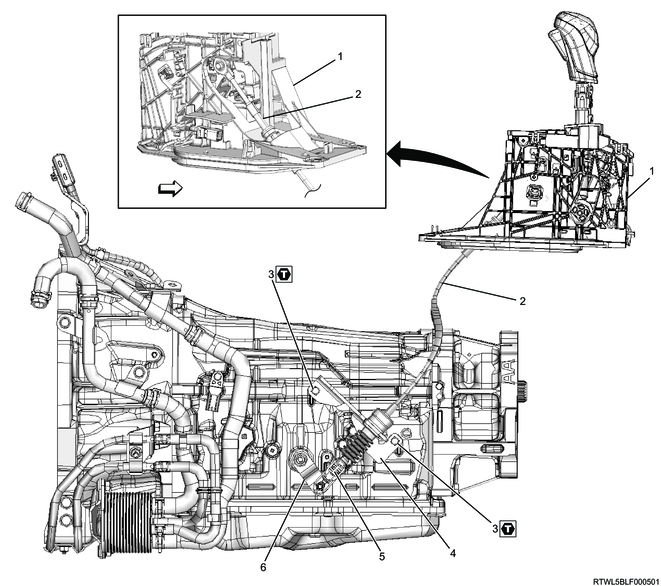

1. Component views
Automatic transmission control cable
Part name
- Selector lever
- Automatic transmission control cable
- Bolt
- Bracket
- Adjuster
- Select control lever
Tightening torque
3: 9.4 N・m { 1.0 kgf・m / 83 lb・in }
2. Preliminary and post procedures
1. Preliminary procedures
1) Open the engine hood.
2) Disconnect the battery cable from the battery negative terminal.
Caution
- After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
- If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
- If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.
3. Console box removal
4. Rear ventilation duct removal
1) Remove the rear ventilation duct from the floor panel.
Legend
- Rear ventilation duct
5. Selector lever removal
1) Disconnect the harness connector from the selector lever.
2) Disconnect the automatic transmission control cable from the selector lever.
Note
- Press the cap part of the automatic transmission control cable.
3) Remove the selector lever from the floor panel.
Legend
- Nuts
- Bolts
Note
- Remove the selector lever because, in the automatic transmission control cable installation, it is necessary to install the automatic transmission control cable before installing the selector lever.
6. Automatic transmission control cable removal
1. Transmission side
1) Disconnect the automatic transmission control cable from the select control lever.
2) Disconnect the automatic transmission control cable from the bracket.
Legend
- Bracket
- Automatic transmission control cable
- Select control lever
3) Pull the automatic transmission control cable free from the bottom of the vehicle.
