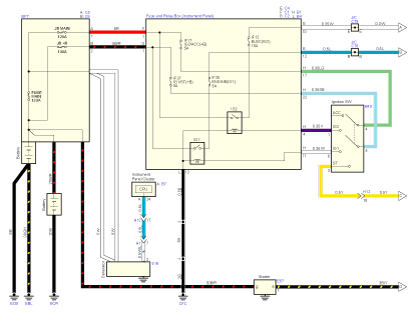

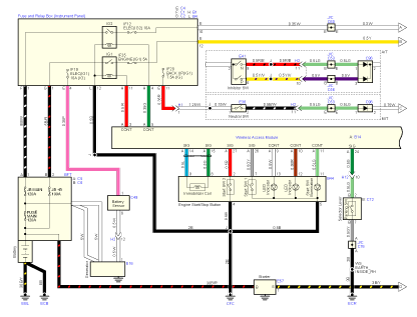

1. Starter and charging
Refer to "LHD Starter and Charging (4JJ3 without DPD Except Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Starter and Charging (4JJ3 without DPD Except Wireless Access Module (Hi-version))
Refer to "LHD Starter and Charging (4JJ3 without DPD Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Starter and Charging (4JJ3 without DPD Wireless Access Module (Hi-version))
Refer to "LHD Starter and Charging (4JJ3 with DPD Except Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Starter and Charging (4JJ3 with DPD Except Wireless Access Module (Hi-version))
Refer to "LHD Starter and Charging (4JJ3 with DPD Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Starter and Charging (4JJ3 with DPD Wireless Access Module (Hi-version))
Refer to "LHD Starter and Charging (RZ4E Except Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Starter and Charging (RZ4E Except Wireless Access Module (Hi-version))
Refer to "LHD Starter and Charging (RZ4E Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Starter and Charging (RZ4E Wireless Access Module (Hi-version))
Refer to "RHD Starter and Charging (4JJ3 without DPD Except Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Starter and Charging (4JJ3 without DPD Except Wireless Access Module (Hi-version))
Refer to "RHD Starter and Charging (4JJ3 without DPD Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Starter and Charging (4JJ3 without DPD Wireless Access Module (Hi-version))
Refer to "RHD Starter and Charging (4JJ3 with DPD Except Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Starter and Charging (4JJ3 with DPD Except Wireless Access Module (Hi-version))
Refer to "RHD Starter and Charging (4JJ3 with DPD Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Starter and Charging (4JJ3 with DPD Wireless Access Module (Hi-version))
Refer to "RHD Starter and Charging (RZ4E Except Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Starter and Charging (RZ4E Except Wireless Access Module (Hi-version))
Refer to "RHD Starter and Charging (RZ4E Wireless Access Module (Hi-version))" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Starter and Charging (RZ4E Wireless Access Module (Hi-version))

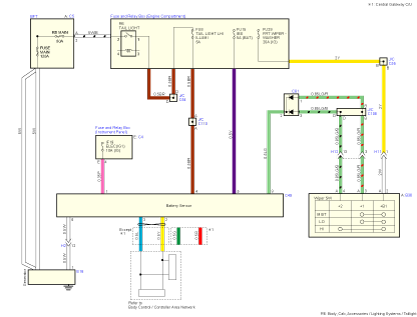

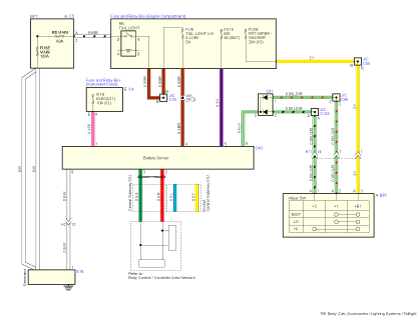

2. Battery Sensor
Refer to "LHD Battery Sensor" in the ETM (wiring diagram). (Open using the ETM viewer.).
LHD Battery Sensor
Refer to "RHD Battery Sensor" in the ETM (wiring diagram). (Open using the ETM viewer.).
RHD Battery Sensor
