Front turn signal light bulb removal

1. Preliminary and post procedures

1. Preliminary procedures

1) Open the engine hood.

2) Disconnect the battery cable from the battery negative terminal.

Caution

  • After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
  • If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
  • If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.

2. Inner liner removal

1) Remove the inner liner from the front fender panel.

3. Front turn signal light bulb removal

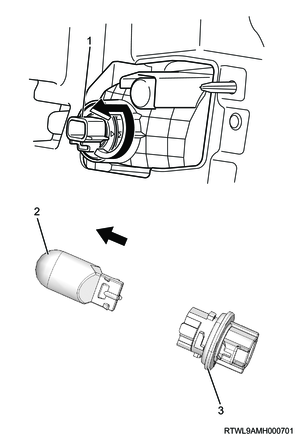

1) Remove the front turn signal light bulb from the front turn signal light bulb socket.

Legend

  1. Connector
  2. Front turn signal light bulb
  3. Front turn signal light bulb socket
