Clearance light bulb removal

1. Preliminary and post procedures

1. Preliminary procedures

1) Open the engine hood.

2) Disconnect the battery cable from the battery negative terminal.

Caution

  • After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
  • If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
  • If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.

2. Clearance light bulb removal

1) Remove the clearance light bulb from the clearance light bulb socket.

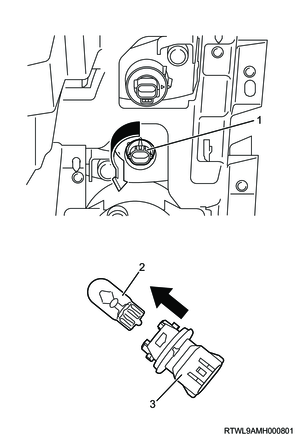

High grade type

Legend

  1. Connector
  2. Clearance light bulb
  3. Clearance light bulb socket

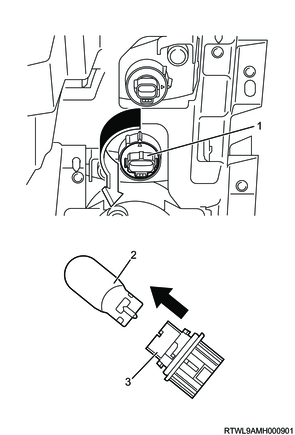

Low grade type

Legend

  1. Connector
  2. Clearance light bulb
  3. Clearance light bulb socket
