Supplementary Information

1. Component views

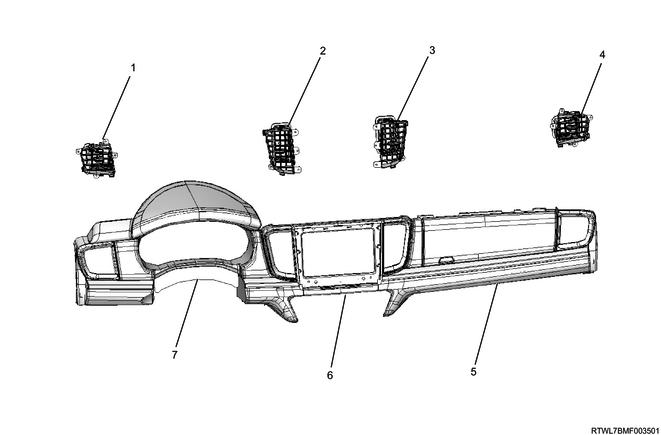

Vent grille (RHD)

Part name

  1. Vent grille (LH)
  2. Center vent grille (LH)
  3. Center vent grille (RH)
  4. Vent grille (RH)
  5. Meter cluster
  6. Bezel
  7. Instrument panel passenger-side upper cover

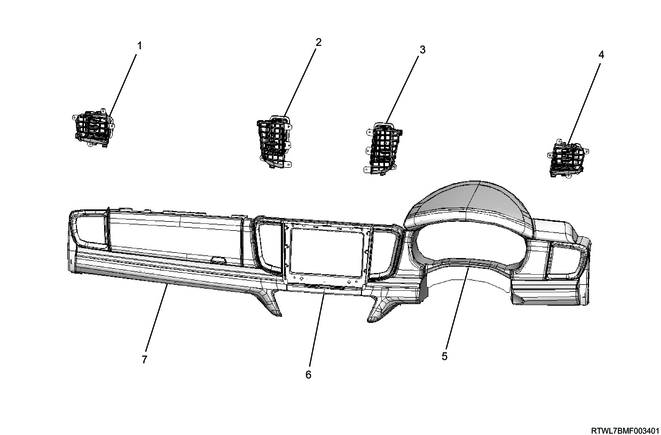

Vent grille (LHD)

Part name

  1. Vent grille (LH)
  2. Center vent grille (LH)
  3. Center vent grille (RH)
  4. Vent grille (RH)
  5. Instrument panel passenger-side upper cover
  6. Bezel
  7. Meter cluster

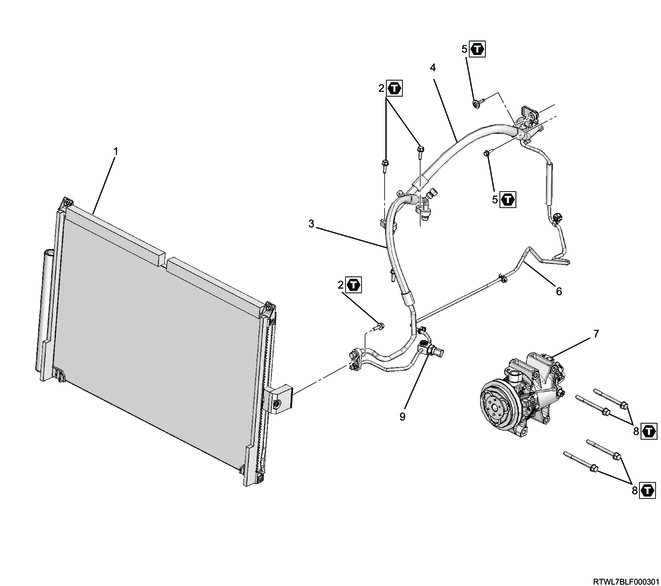

A/C compressor (4JJ3)

Part name

  1. Condenser
  2. Bolt
  3. A/C hose
  4. A/C hose
  5. Bolt
  6. A/C pipe
  7. A/C compressor
  8. Bolt
  9. Pressure switch

Tightening torque

2: 15 N・m { 1.5 kgf・m / 11 lb・ft }

5: 6.6 N・m { 0.67 kgf・m / 58 lb・in }

8: 51 N・m { 5.2 kgf・m / 38 lb・ft }

A/C compressor (RZ4E)

Part name

  1. Condenser
  2. A/C hose
  3. A/C hose
  4. Bolt
  5. Bolt
  6. A/C pipe
  7. A/C pipe
  8. A/C pipe
  9. Bolt
  10. A/C compressor
  11. Pressure switch

Tightening torque

4: 6.6 N・m { 0.67 kgf・m / 58 lb・in }

5: 15 N・m { 1.5 kgf・m / 11 lb・ft }

9: 52 N・m { 5.3 kgf・m / 38 lb・ft }

Actuator (Auto A/C)

Part name

  1. Blower
  2. Heater evaporator unit
  3. Mode actuator
  4. Mix actuator (Passenger side)
  5. Mix actuator (Driver side)
  6. Rear ventilation duct actuator
  7. Intake actuator

Actuator (Manual A/C)

Part name

  1. Blower
  2. Heater evaporator unit
  3. Mode actuator
  4. Mix actuator

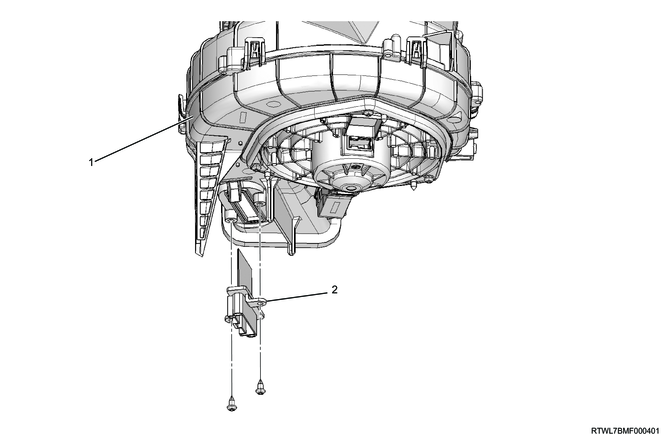

Blower resistor

Part name

  1. Blower
  2. Blower resistor

Blower module

Part name

  1. Blower
  2. Blower module

Condenser

Part name

  1. Bolt
  2. Condenser

Tightening torque

1: 6.6 N・m { 0.7 kgf・m / 58 lb・in }

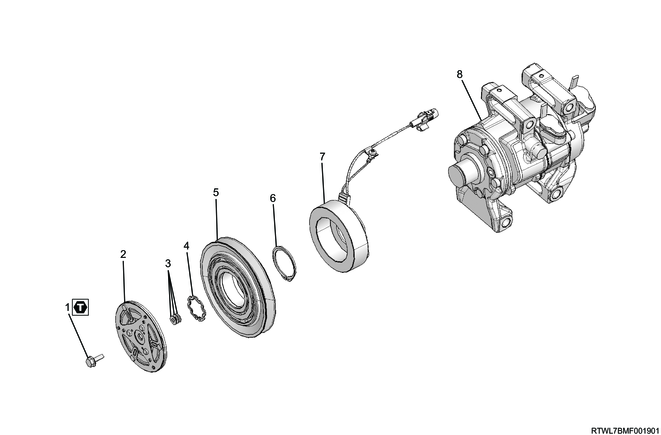

A/C compressor magnetic clutch (4JJ3 models with auto A/C, except M/T models (Euro 5 or above))

Part name

  1. Drive plate bolt
  2. Drive plate
  3. Shim
  4. Snap ring
  5. Pulley
  6. Snap ring
  7. Field coil
  8. Compressor

Tightening torque

1: 25 N・m { 2.5 kgf・m / 18 lb・ft }

A/C compressor magnetic clutch (4JJ3 models with auto A/C, M/T models (Euro 5 or above))

Part name

  1. Drive plate bolt
  2. Drive plate
  3. Shim
  4. Snap ring
  5. Pulley
  6. Snap ring
  7. Field coil
  8. Compressor

Tightening torque

1: 25 N・m { 2.5 kgf・m / 18 lb・ft }

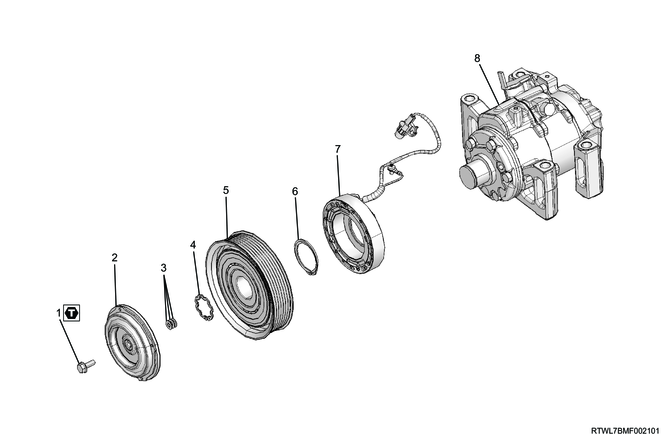

A/C compressor magnetic clutch (Models with RZ4E and auto A/C)

Part name

  1. Drive plate bolt
  2. Drive plate
  3. Shim
  4. Snap ring
  5. Pulley
  6. Snap ring
  7. Field coil
  8. Compressor

Tightening torque

1: 25 N・m { 2.5 kgf・m / 18 lb・ft }

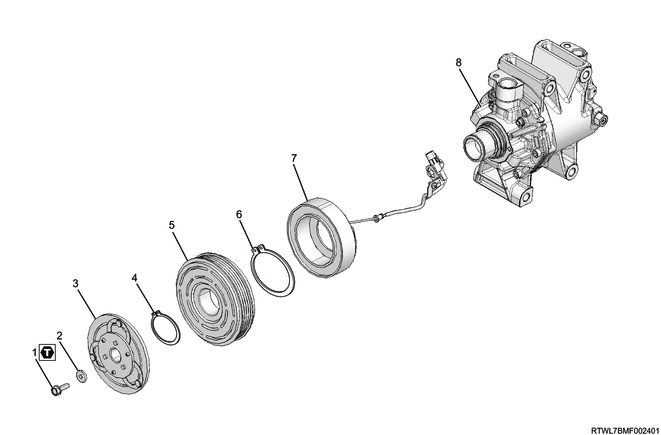

A/C compressor magnetic clutch (Models with manual A/C, M/T models (Euro 5 or above))

Part name

  1. Drive plate bolt
  2. Plain washer
  3. Drive plate
  4. Snap ring
  5. Pulley
  6. Snap ring
  7. Field coil
  8. Compressor

Tightening torque

1: 13 N・m { 1.3 kgf・m / 115 lb・in }

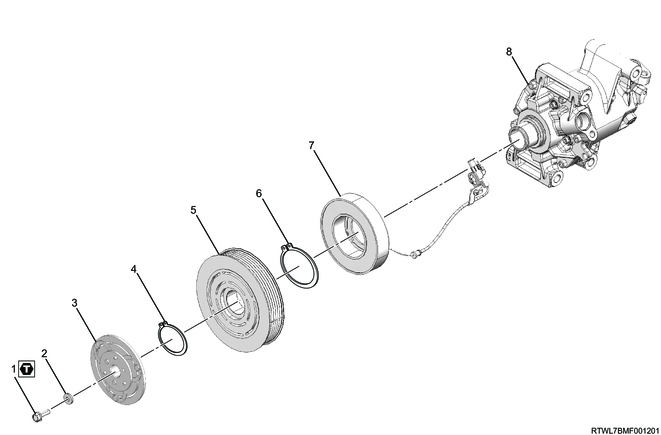

A/C compressor magnetic clutch (Models with manual A/C, except M/T models (Euro 5 or above))

Part name

  1. Drive plate bolt
  2. Plain washer
  3. Drive plate
  4. Snap ring
  5. Pulley
  6. Snap ring
  7. Field coil
  8. Compressor

Tightening torque

1: 13 N・m { 1.3 kgf・m / 115 lb・in }
