Crankshaft rear oil seal removal (4JJ3 with DPD)

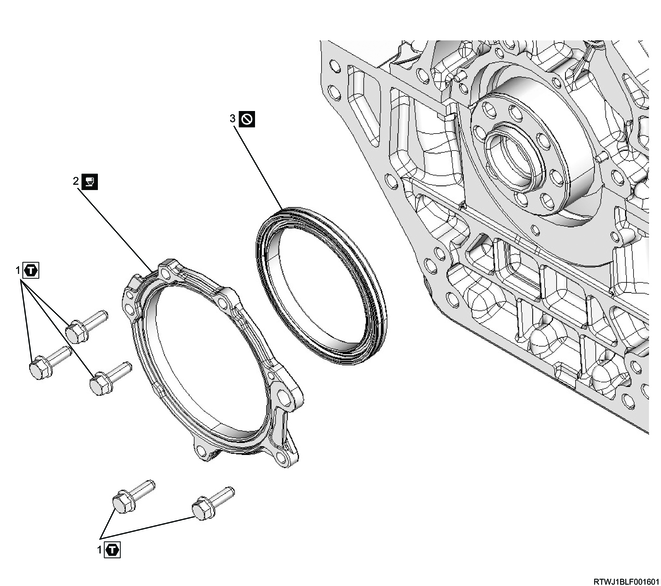

1. Component views

Crankshaft rear oil seal

Part name

  1. Bolt
  2. Oil seal retainer
  3. Crankshaft rear oil seal

Tightening torque

1: 25 N・m { 2.5 kgf・m / 18 lb・ft }

2. Rear plate removal

Refer to "1.Engine 1B.Mechanical(4JJ3 with DPD) rear plate removal".

3. Oil seal retainer removal

1) Remove the oil seal retainer and crankshaft rear oil seal as a set from the cylinder block and crankcase.

Caution

  • Do not reuse the crankshaft rear oil seal.

4. Crankshaft rear oil seal removal

1) Remove the crankshaft rear oil seal from the oil seal retainer.

Caution

  • Do not reuse the crankshaft rear oil seal.

2) Remove the crankshaft rear slinger from the crankshaft using the special tool.

Note

  • Referring to the diagram, install the slinger puller and remove the slinger.


SST: 5-8840-2360-0 - rear oil seal remover
