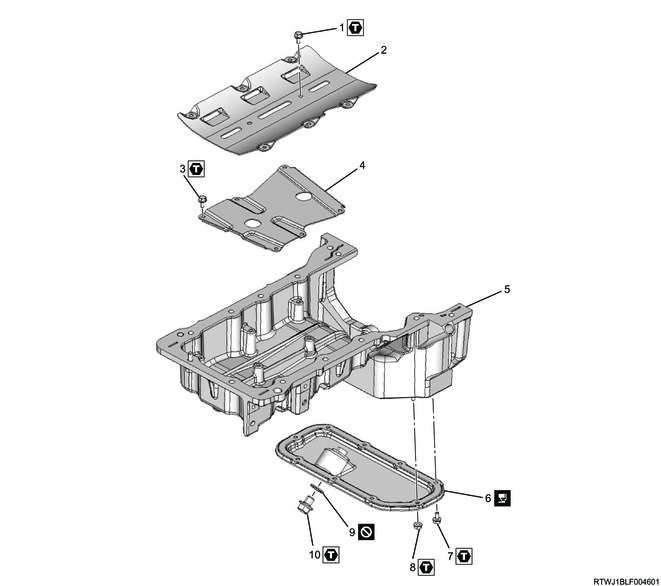

Crankcase removal (RZ4E-TC)

Part name

Tightening torque

1: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

3: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

7: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

8: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

10: 83.3 N・m { 8.5 kgf・m / 61 lb・ft }

Refer to "1.Engine 1B.Mechanical(RZ4E-TC) Timing chain removal".

1) Remove the oil pan from the crankcase.

1) Remove the crankcase from the cylinder block.

2) Remove the baffle plate from the crankcase.
