Input shaft disassembly (MVL)

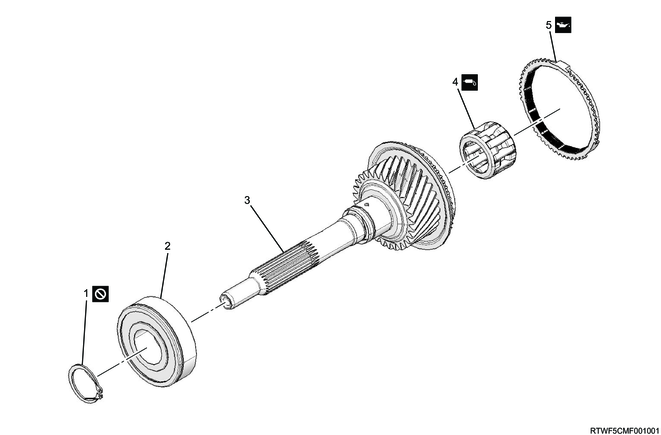

1. Component views

Input shaft

Part name

  1. Input shaft snap ring
  2. Input shaft bearing
  3. Input shaft
  4. Needle bearing
  5. Input shaft block ring

2. Input shaft disassembly

1) Remove the needle bearing from the input shaft.

2) Remove the input shaft block ring from the input shaft.

3) Remove the input shaft snap ring from the input shaft using snap ring pliers.

4) Remove the input shaft bearing from the input shaft using a general-purpose bearing remover and press.

Legend

  1. General-purpose bearing remover
