1. Component views
Automatic transmission control cable
Part name
- Selector lever
- Automatic transmission control cable
- Bolt
- Bracket
- Adjuster
- Select control lever
Tightening torque
3: 9.4 N・m { 1.0 kgf・m / 83 lb・in }
2. Automatic transmission control cable installation
1. Transmission side
1) Connect the automatic transmission control cable to the bracket.
Note
- Always check the snap is completely on position.
Legend
- Bracket
- Automatic transmission control cable
2) Unlock the adjuster of the cable.
Note
- Slide the cover in the direction by the arrow.
Legend
- Cover
Note
- Use an ordinary screwdriver to move the lock piece from the position indicated by the arrow.
- Continue to move the lock piece until the adjuster position begins to change.
Legend
- Adjuster
- Lock piece
3. Selector lever preparation
1) Prepare to install the automatic transmission control cable on the cab side by hanging on the transmission.
Note
- Be sure to check that the selector lever has been already removed.
4. Selector lever installation
1) Connect the automatic transmission control cable to the selector lever.
Note
- Securely install in the correct way as shown in the diagram below.
- Installing the cable to the selector lever in the wrong way may twist the cable and interference with transmission case.

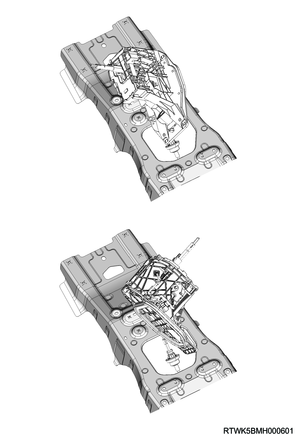

Correct installation motion
Incorrect installation motion
Note
- Install the selector lever to the floor panel following the tightening sequence below.
2) Temporarily tighten the front nuts.
3) Temporarily tighten the rear bolts.
4) Tighten the front nuts to the specified torque.
5) Tighten the rear bolts to the specified torque.
Tightening torque: 7 N・m { 0.7 kgf・m / 62 lb・in }
Legend
- Nuts
- Bolts
6) Connect the harness connector to the selector lever.
5. Rear ventilation duct installation
1) Install the rear ventilation duct to the floor panel.
Legend
- Rear ventilation duct
6. Console box installation
7. Automatic transmission control cable adjustment
1) Check that the selector lever and transmission are in N position.
Legend
- P
- R
- N
- D
2) Connect the automatic transmission control cable to the select control lever.
Legend
- Automatic transmission control cable bracket
- Automatic transmission control cable
- Select control lever
Caution
- Be sure to check that the automatic transmission cable route is not interfered with surrounding parts.
- In case of interference found, reinstall the automatic transmission cable.
3) Lock the automatic transmission cable adjuster.
Note
- Insert the lock piece to the adjuster.
- Slide the cover on the adjuster and secure lock piece.
Legend
- Cover
4) Press the select lever knob button 5 times, and then check that the select lever moves to each position smoothly.
Note
- Check on ACC condition or Engine start condition with the brake applied.
5) Check that the shift position indicated on the meter cluster and the actual shift position are matched.
8. Preliminary and post procedures
1. Post procedures
1) Connect the battery cable to the battery negative terminal.
2) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.
Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".
3) Close the engine hood.
