Supplementary Information

1. Component views

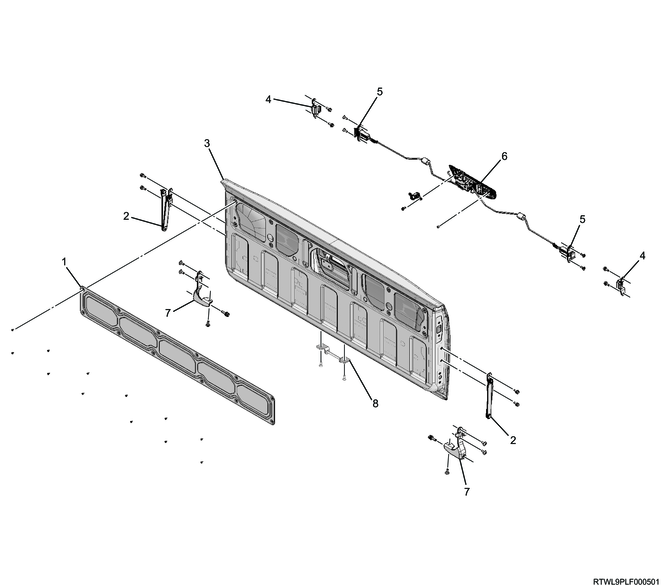

Center pull handle specifications

Part name

  1. Hole cover
  2. Tail gate link
  3. Tail gate
  4. Tail gate lock striker
  5. Tail gate lock
  6. Outside handle
  7. Tail gate hinge
  8. Center hinge (Models with center hinges)

Side lock handle specification

Part name

  1. Tail gate
  2. Side lock handle
  3. Tail gate link
  4. Tail gate hinge
  5. Center hinge

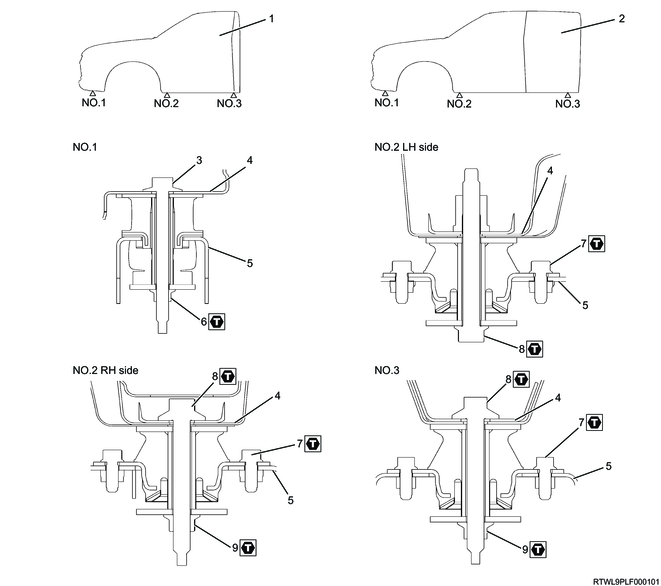

Body mounting (Regular cab, crew cab)

Part name

  1. Regular cab
  2. Crew cab
  3. Bolt
  4. Cab side
  5. Frame side
  6. Nut
  7. Bolt
  8. Bolt
  9. Nut

Tightening torque

6: 50 N・m { 5.1 kgf・m / 37 lb・ft }

7: 60 N・m { 6.1 kgf・m / 44 lb・ft }

8: 150 N・m { 15.3 kgf・m / 111 lb・ft }

9: 150 N・m { 15.3 kgf・m / 111 lb・ft }

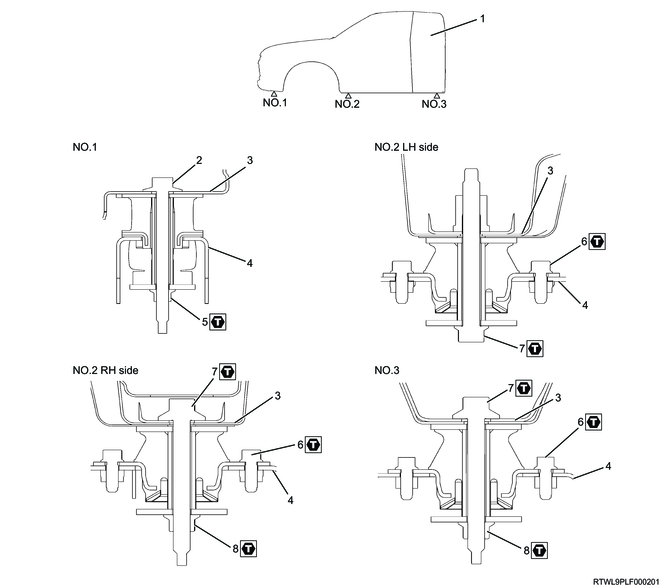

Body mounting (Extend cab)

Part name

  1. Extend cab
  2. Bolt
  3. Cab side
  4. Frame side
  5. Nut
  6. Bolt
  7. Bolt
  8. Nut

Tightening torque

5: 50 N・m { 5.1 kgf・m / 37 lb・ft }

6: 60 N・m { 6.1 kgf・m / 44 lb・ft }

7: 150 N・m { 15.3 kgf・m / 111 lb・ft }

8: 150 N・m { 15.3 kgf・m / 111 lb・ft }
