1. Component views

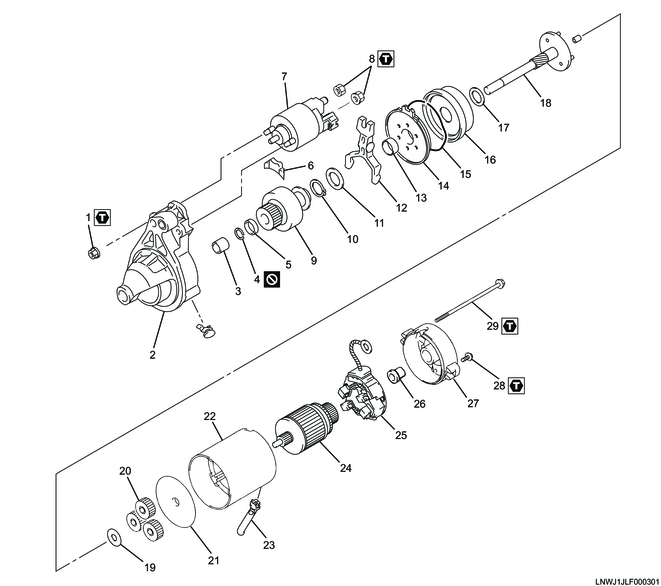

Starter motor
Part name
- Nut
- Housing
- Bearing
- Snap ring
- Pinion stopper
- Dust cover
- Magnetic switch
- Nut
- Pinion and overrunning clutch
- Snap ring
- Washer
- Shift lever
- Bearing
- Shock absorber
- Starter spring
- Internal gear
- Washer
- Clutch shaft
- Washer
- Planetary gear
- Plate
- Yoke
- M-terminal lead wire
- Armature
- Brush holder
- Bearing
- Rear cover
- Screw
- Through bolt
Tightening torque
1: 7.5 N・m { 0.76 kgf・m / 66.4 lb・in }
8: 10.0 N・m { 1.0 kgf・m / 89 lb・in }
28: 1.5 N・m { 0.15 kgf・m / 13.3 lb・in }
29: 5.5 N・m { 0.56 kgf・m / 48.7 lb・in }

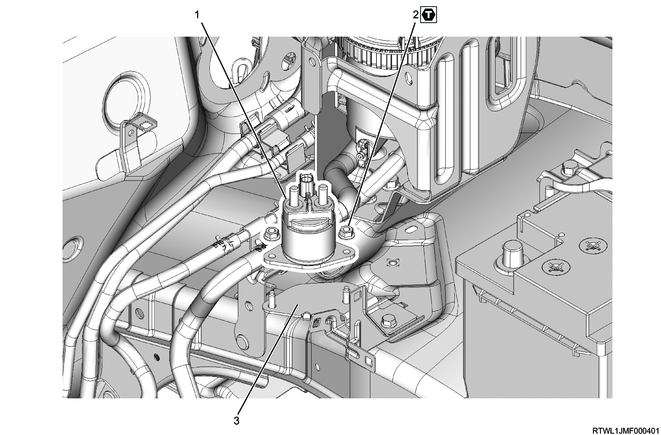

ICR relay
Part name
- ICR relay
- Nut
- Bracket
Tightening torque
2: 8.6 N・m { 0.9 kgf・m / 76 lb・in }
