Supplementary Information

1. Component views

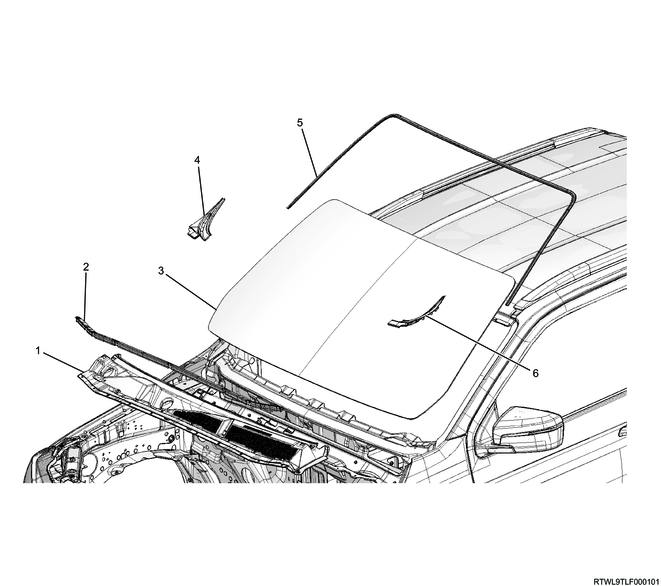

Front windshield glass

Part name

  1. Cowl cover
  2. Engine hood rear seal
  3. Front windshield glass
  4. Side cowl cover (RH)
  5. Molding
  6. Side cowl cover (LH)

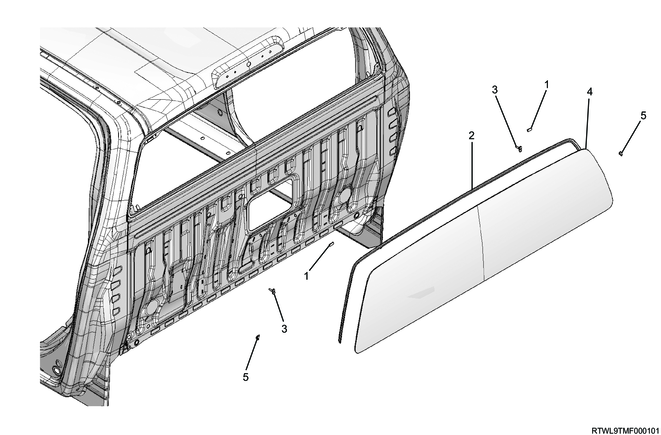

Backlight glass

Part name

  1. Retainer
  2. Dam seal
  3. Backlight glass support
  4. Backlight glass
  5. Rear defogger (Models with rear defogger)
