Rear end trim cover removal

1. Component views

Regular cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Front tongue side seat belt
  4. Rear pillar upper trim cover
  5. Rear end upper trim cover
  6. Rear end trim cover
  7. Rear pillar lower trim cover
  8. Front sill plate
  9. Dash side trim pad

Crew cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Front tongue side seat belt
  4. Center pillar upper trim cover
  5. Assist grip
  6. Rear door finisher
  7. Rear upper trim cover
  8. Rear lower trim cover
  9. Rear end upper trim cover
  10. Rear end trim cover
  11. Rear tongue side seat belt
  12. Rear tongue side center seat belt
  13. Rear sill plate
  14. Center pillar lower trim cover
  15. Front sill plate
  16. Assist grip
  17. Dash side trim pad

Extend cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Rear tongue side seat belt
  4. Rear pillar upper trim cover
  5. Rear end trim cover
  6. Rear pillar lower trim cover
  7. Front sill plate
  8. Assist grip
  9. Dash side trim pad

2. Front sill plate removal

1. Regular cab

1) Remove the front sill plate from the floor.

Legend

  1. Front sill plate
  2. Clip
  3. Claw section

3. Front door finisher removal

1. Regular cab

1) Remove the front door finisher from the body.

4. Rear sill plate removal

1. Crew cab

1) Remove the rear sill plate from the floor.

Legend

  1. Rear sill plate
  2. Clip
  3. Claw section

5. Rear door finisher removal

1. Crew cab

1) Remove the rear door finisher from the body.

6. Rear end upper trim cover removal

1. Regular cab

1) Remove the rear end upper trim cover from the body panel.

Legend

  1. Claw section
  2. Rear end upper trim cover
  3. Clip
  4. Hook

2. Crew cab

1) Remove the rear end upper trim cover from the body panel.

Caution

  • For models with center top tethers (bracket type), disengage the clips and claws, and then pull upward while bending the end of the rear end upper trim to an extent that it will not get damaged.

Models with center top tethers (bracket type)

Legend

  1. Seat belt guide cover
  2. Rear end upper trim cover
  3. Clip
  4. Claw section
  5. Hook
  6. Bend the end of the rear end upper trim cover.
  7. Pull out the rear end upper trim upward.
  8. Center top tether (Bracket type)

Models without center top tethers (bracket type)

Legend

  1. Seat belt guide cover
  2. Rear end upper trim cover
  3. Clip
  4. Claw section
  5. Hook

7. Rear pillar trim cover removal

1. Regular cab

1) Remove the seat belt lower anchor bolt from the rear pillar.

Legend

  1. Seat belt lower anchor bolt

2) Remove the rear pillar lower trim cover from the rear pillar.

Legend

  1. Claw section
  2. Rear pillar lower trim cover
  3. Clip

2. Crew cab

1) Remove the rear pillar lower trim cover from the rear pillar.

Legend

  1. Claw section
  2. Rear pillar lower trim cover
  3. Clip

8. Rear end trim cover removal

1) Remove the rear end trim cover from the body panel.

Note

  • Pull out the push clip while holding it in the direction of the arrow.

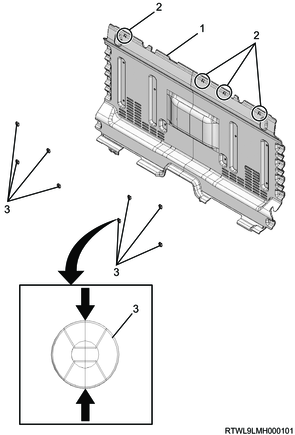

Regular cab

Legend

  1. Rear end trim cover
  2. Hook hole
  3. Push clip

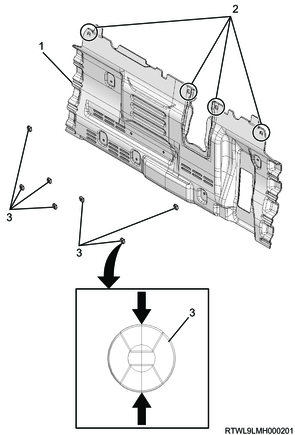

Crew cab

Legend

  1. Rear end trim cover
  2. Hook hole
  3. Push clip

Extend cab

Legend

  1. Rear end trim cover
  2. Clip
  3. Hook
  4. Claw section
