Passenger seat removal

1. Component views

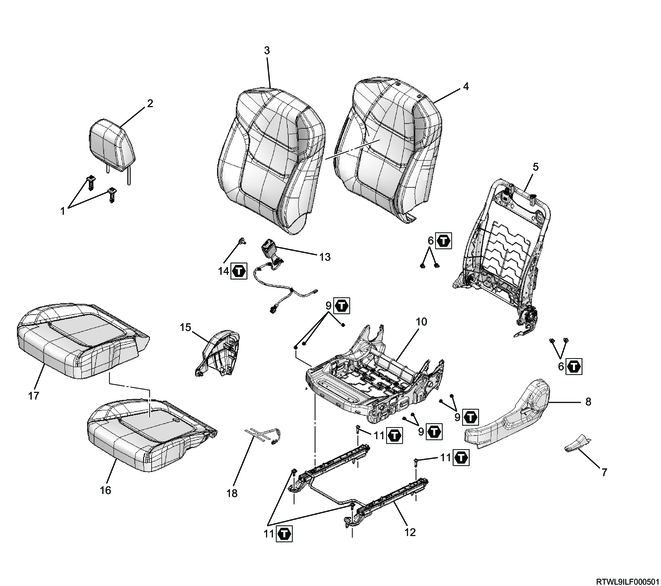

Manual control seat (Without height control, separate headrest type)

Part name

  1. Headrest holder
  2. Front seat headrest
  3. Front seat back cover
  4. Front seat back pad
  5. Front seat back frame
  6. Bolt
  7. Reclining lever
  8. Reclining cover
  9. Nut
  10. Front seat cushion frame
  11. Bolt
  12. Seat slide adjuster
  13. Front buckle side seat belt
  14. Bolt
  15. Side cover
  16. Front seat cushion pad
  17. Front seat cushion cover
  18. Seat belt reminder sensor

Tightening torque

6: 46 N・m { 4.7 kgf・m / 34 lb・ft }

9: 21 N・m { 2.1 kgf・m / 15 lb・ft }

11: 46 N・m { 4.7 kgf・m / 34 lb・ft }

14: 40 N・m { 4.1 kgf・m / 30 lb・ft }

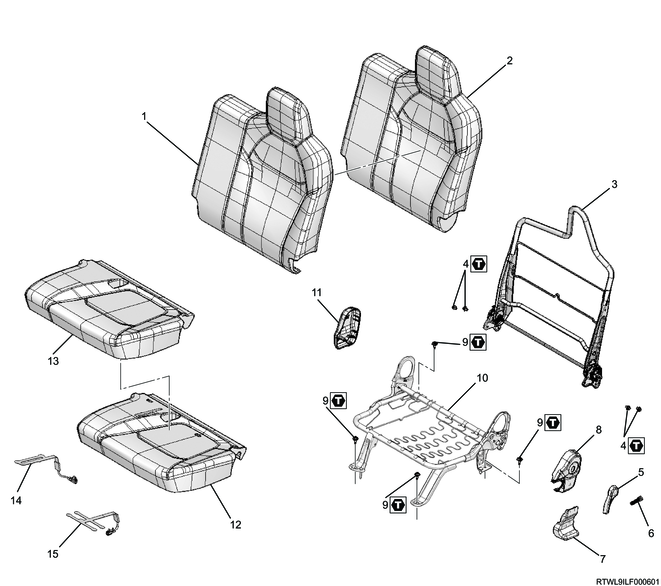

Bench seat

Part name

  1. Front seat back cover
  2. Front seat back pad
  3. Front seat back frame
  4. Bolt
  5. Reclining lever
  6. Screw
  7. Leg cover
  8. Reclining cover
  9. Bolt
  10. Front seat cushion frame
  11. Side cover
  12. Front seat cushion pad
  13. Front seat cushion cover
  14. Seat belt reminder sensor (center)
  15. Seat belt reminder sensor (LH)

Tightening torque

4: 46 N・m { 4.7 kgf・m / 34 lb・ft }

9: 46 N・m { 4.7 kgf・m / 34 lb・ft }

2. SRS airbag safety information

1. Handling deployed airbag

Warning

  • When handling the airbag, the safety precautions must be observed.
  • The surface of the deployed airbag may contain a small amount of sodium hydroxide.
    This is a byproduct of the deployment reaction, and may cause irritation if it comes in contact with the skin or eyes.
  • Be sure to wear gloves and safety glasses when handling an airbag after deployment.
  • Wash hands with soap after handling.

Caution

  • After the airbag is deployed, inspect for burning or melting caused by excessive heat, or any other problems.
  • If the SRS coil is damaged, replace it.

2. Handling undeployed airbag assembly

Warning

  • When transporting an undeployed airbag, make sure that the trim cover is facing away from your body.
  • Never carry an airbag with pretensioner by holding the connector or harness.
  • When placing an undeployed airbag, make sure to face the trim cover upward.
  • Do not put any object on the steering wheel with the airbag surface facing downward.
  • Not following this procedure may result in fire or injuries.

3. SRS airbag preparation

1. SRS deactivation

1) Set the ignition switch to LOCK and remove the key.

Note

  • For models with the passive entry and start system, turn the power mode OFF.

2) Remove the SRS fuse from the fuse relay box.

3) Disconnect the battery cable from the battery negative terminal.

Caution

  • After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
  • If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
  • If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.
  • After disconnecting the battery cable, do not perform work for approximately 15 seconds.

4. Passenger seat removal

1. Bucket seat

1) Remove the passenger seat from the floor.

2) Disconnect the connector from the passenger seat.

2. Bench seat

1) Draw out the front buckle side center seat belt from the seat hole of the bench seat cushion and drop it on the floor.

2) Remove the front tongue side center seat belt from the seat band of the bench seat.

Legend

  1. Center seat belt buckle
  2. Passenger seat belt buckle

Legend

  1. Front tongue side center seat belt
  2. Bench seat
  3. Seat band
  4. Webbing loop
