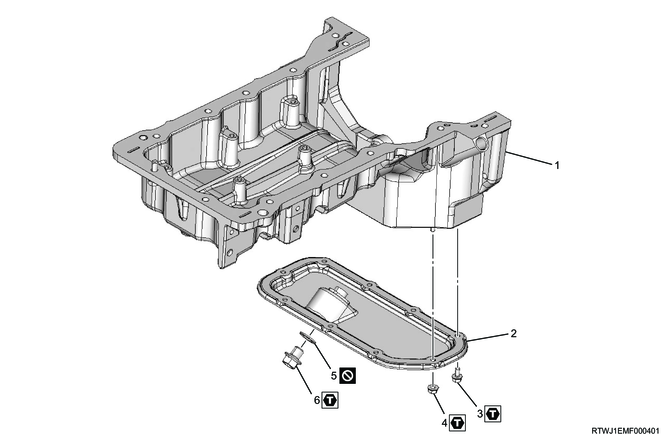

Oil pan installation (RZ4E-TC)

Part name

Tightening torque

3: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

4: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

6: 83.3 N・m { 8.5 kgf・m / 61 lb・ft }

1) Referring to the diagram, apply ThreeBond 1207B or equivalent to the oil pan.

Standard value

a: 2.0 to 3.0 mm { 0.079 to 0.118 in } Bead height

b: 4.0 to 5.0 mm { 0.157 to 0.197 in } Bead width

2) Install the oil pan to the crankcase.

Tightening torque: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

1) Replenish the engine with the engine oil.

2) Check the tightening of the oil pan drain plug.

Tightening torque: 83 N・m { 8.5 kgf・m / 61 lb・ft }

Refer to "9.Body, Cab, Accessories 9G.Hood, Fenders, Doors underguard installation".

1. Post procedures

1) Lower the vehicle.

2) Close the engine hood.
