Cooling fan belt removal (RZ4E-TC)

1. Component views

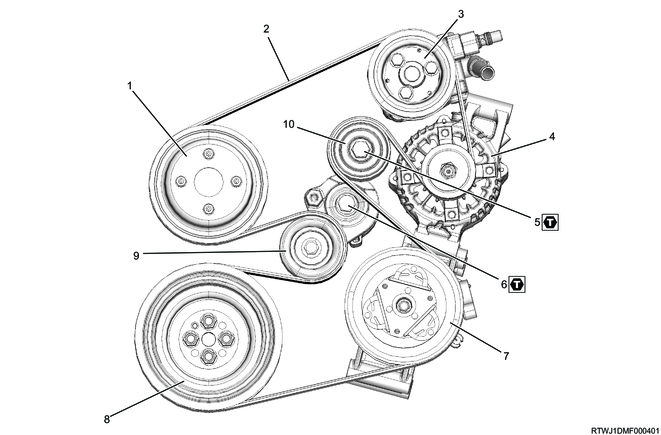

Cooling fan belt

Part name

  1. Fan pulley
  2. Cooling fan belt
  3. Power steering oil pump pulley
  4. Generator
  5. Bolt
  6. Bolt
  7. A/C compressor
  8. Crankshaft pulley
  9. Auto tensioner pulley
  10. Idle pulley

Tightening torque

5: 110 N・m { 11.2 kgf・m / 81 lb・ft }

6: 110 N・m { 11.2 kgf・m / 81 lb・ft }

2. Preliminary and post procedures

1. Preliminary procedures

1) Open the engine hood.

3. Freezer compressor drive belt removal

1. Freezer specifications

1) Loosen the tension pulley lock nut.

2) Loosen the tension pulley adjust bolt.

3) Remove the freezer compressor drive belt from the following parts.

  • Freezer compressor pulley
  • Crankshaft pulley
  • Tension pulley

Legend

  1. Tension pulley adjust bolt
  2. Tension pulley lock nut
  3. Freezer compressor drive belt

4. Cooling fan belt removal

1) Set the torque wrench on the boss section of the auto tensioner.

Caution

  • Do not attach the torque wrench on the pulley bolt of the auto tensioner.

2) Remove the cooling fan belt from the following parts by moving the auto tensioner pulley in the direction shown in the diagram.

  • Water pump pulley
  • Generator
  • Auto tensioner pulley
  • Idle pulley
  • A/C compressor
  • Crankshaft pulley
  • Power steering oil pump pulley

Legend

  1. Boss section
