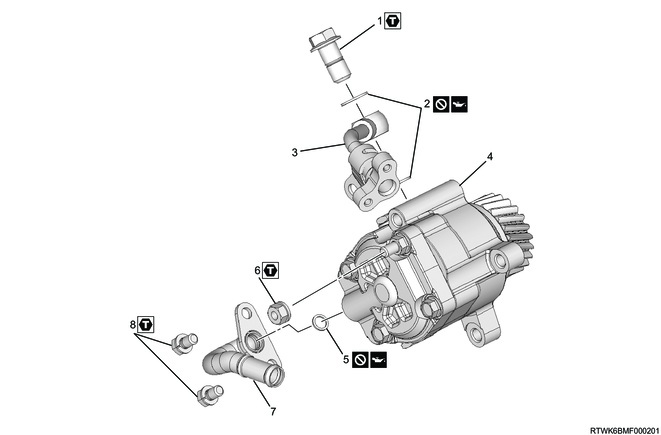

Power steering oil pump (4JJ3) disassembly

Part name

Tightening torque

1: 37 N・m { 3.8 kgf・m / 27 lb・ft }

6: 21 N・m { 2.1 kgf・m / 15 lb・ft }

8: 16 N・m { 1.6 kgf・m / 12 lb・ft }

1) Remove the suction pipe and O-ring from the power steering oil pump.

2) Remove the joint bracket from the power steering oil pump.

3) Remove the joint and washer from the power steering oil pump.
