1. Clearance light bulb installation
1) Install the clearance light bulb to the clearance light bulb socket.

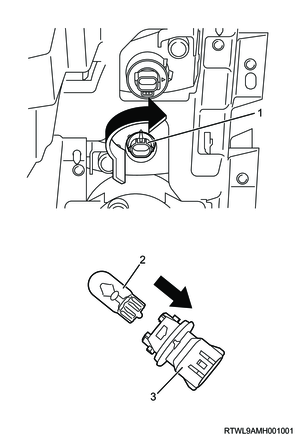

High grade type
Legend
- Connector
- Clearance light bulb
- Clearance light bulb socket

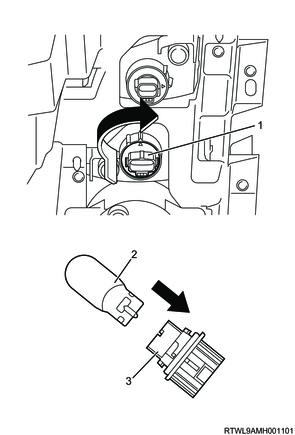

Low grade type
Legend
- Connector
- Clearance light bulb
- Clearance light bulb socket
2. Preliminary and post procedures
1. Post procedures
1) Connect the battery cable to the battery negative terminal.
2) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.
Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".
3) Close the engine hood.
