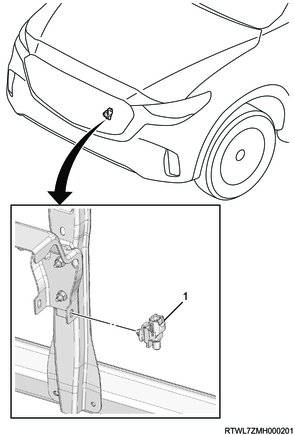

1. Outside air temperature sensor installation
1) Install the outside air temperature sensor to the front end engine hood stay.
2) Connect the connector to the outside air temperature sensor.
Legend
- Outside air temperature sensor
2. Front bumper installation
1) Install the front bumper support to vehicle.
2) Install the soft nose to the front bumper support.
Legend
- Clip
- Screw
- Soft nose
- Front bumper support
3) Install the intake air duct to the air cleaner box and radiator core support.
Legend
- Intake air duct
- Clip
3. Preliminary and post procedures
1. Post procedures
1) Connect the battery cable to the battery negative terminal.
2) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.
Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".
3) Close the engine hood.
