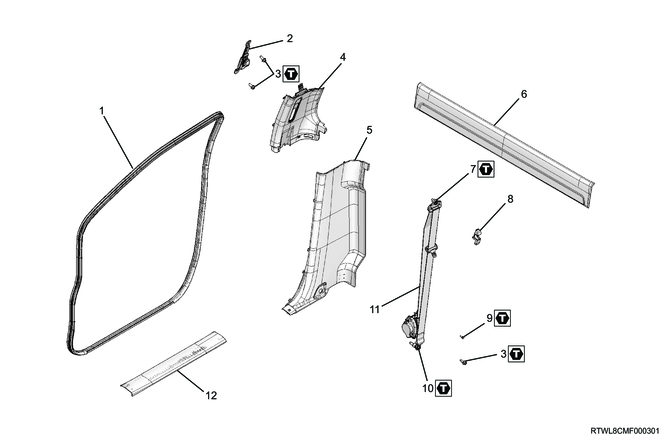

Front tongue side seat belt (without pretensioner) (regular cab) installation

Part name

Tightening torque

3: 46 N・m { 4.7 kgf・m / 34 lb・ft }

7: 46 N・m { 4.7 kgf・m / 34 lb・ft }

9: 8.2 N・m { 0.8 kgf・m / 73 lb・in }

10: 46 N・m { 4.7 kgf・m / 34 lb・ft }

1) Install the front tongue side seat belt to the rear pillar.

Tightening torque: 8.2 N・m { 0.8 kgf・m / 73 lb・in } Upper side bolt

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft } Lower side bolt

2) Install the belt guide to the rear pillar.

Legend

3) Install the seat belt upper anchor bolt to the seat belt adjuster.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

4) Install the adjuster cover to the seat belt adjuster.

Legend

1) Install the rear pillar lower trim cover to the rear pillar.

Legend

2) Install the seat belt lower anchor bolt to the rear pillar.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

Legend

1) Install the rear end upper trim cover to the body panel.

Legend

1) Install the front door finisher to the body.

1) Install the front sill plate to the floor.

Legend
