Supplementary Information

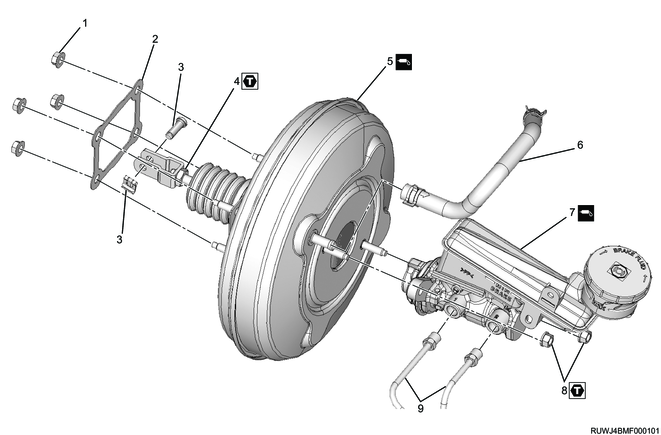

Part name

Tightening torque

2: 27 to 39 N・m { 2.8 to 4.0 kgf・m / 20 to 29 lb・ft }

8: 18 to 24 N・m { 1.8 to 2.4 kgf・m / 13 to 18 lb・ft }

Part name

Part name

Part name

Tightening torque

4: 15 to 25 N・m { 1.5 to 2.5 kgf・m / 11 to 18 lb・ft }

8: 10 to 16 N・m { 1.0 to 1.6 kgf・m / 7 to 12 lb・ft }

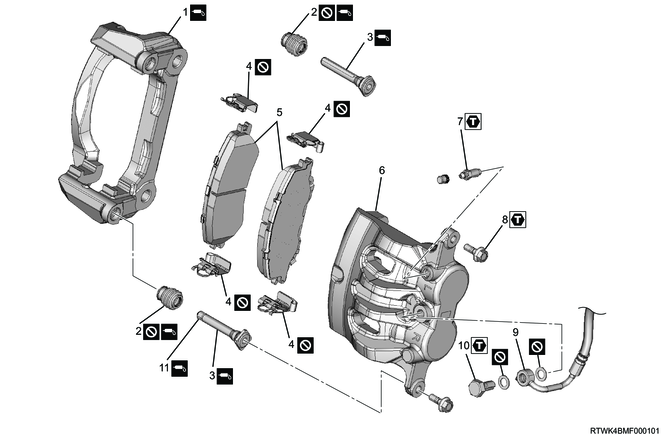

Part name

Tightening torque

7: 9 to 13 N・m { 0.9 to 1.3 kgf・m / 80 to 115 lb・in }

8: 32 to 42 N・m { 3.3 to 4.3 kgf・m / 24 to 31 lb・ft }

10: 29 to 39 N・m { 3.0 to 4.0 kgf・m / 21 to 29 lb・ft }

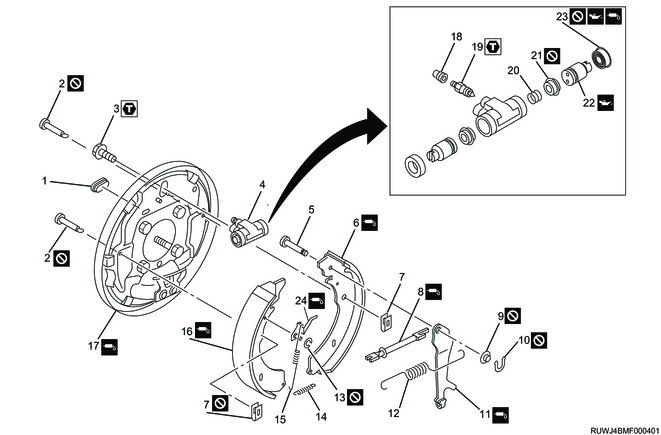

Part name

Part name

Tightening torque

3: 14 to 18 N・m { 1.4 to 1.8 kgf・m / 10 to 13 lb・ft }

19: 6 to 8 N・m { 0.6 to 0.8 kgf・m / 53 to 71 lb・in }
