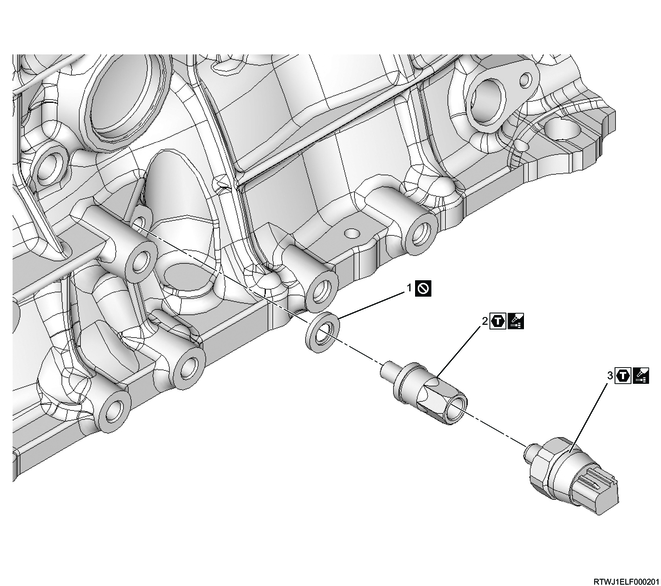

1. Component views
Oil pressure switch
Part name
- Gasket
- Adapter
- Oil pressure switch
Tightening torque
2: 25 N・m { 2.5 kgf・m / 18 lb・ft }
3: 15 N・m { 1.5 kgf・m / 11 lb・ft }
2. Preliminary and post procedures
1. Preliminary procedures
1) Open the engine hood.
2) Disconnect the battery cable from the battery negative terminal.
Caution
- After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
- If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
- If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.
3) Raise the vehicle.
3. Oil pressure switch removal
1) Disconnect the connector from the oil pressure switch.
2) Remove the oil pressure switch from the adapter.
3) Remove the adapter and gasket from the cylinder block.
Caution
- Do not reuse the gasket.
