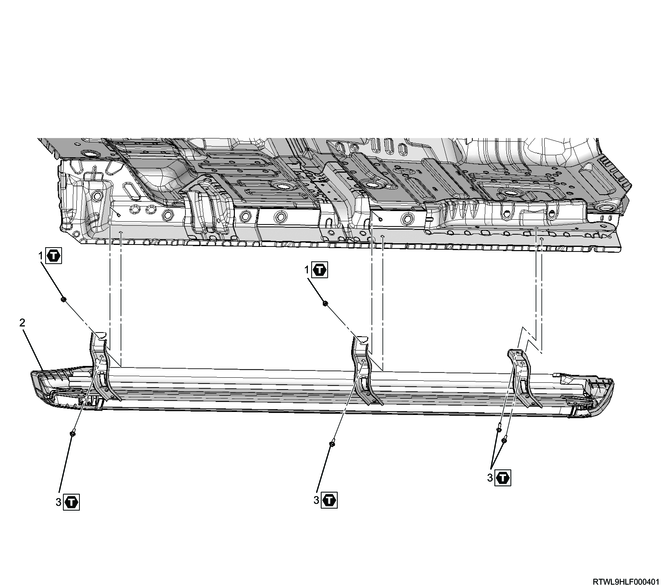

Side step removal

Part name

Tightening torque

1: 16 N・m { 1.6 kgf・m / 12 lb・ft }

3: 16 N・m { 1.6 kgf・m / 12 lb・ft }

1) Remove the side step from the vehicle.

2) Remove the bracket from the side step.

3) Remove the cover bracket from the side step and cover.

4) Remove the cover from the side step.

Legend
