Selector lever reassembly (AWR6B45)

1. Component views

Selector lever

Part name

  1. Selector knob
  2. Clip
  3. Cover terminal
  4. Shift lock cover
  5. Shift lock button
  6. Spring shift lock
  7. Housing LWR
  8. Shift lever plate sub-assembly
  9. Selector lever seal

2. Selector lever reassembly

1) Install the housing LWR to the shift lever plate sub-assembly.

Legend

  1. Housing LWR

2) Install the spring shift lock to shift lock button.

3) Install the shift lock button to the shift lever plate sub-assembly.

Legend

  1. Shift lock button
  2. Spring shift lock

4) Install the shift lock cover to the shift lever plate sub-assembly.

Legend

  1. Shift lock cover

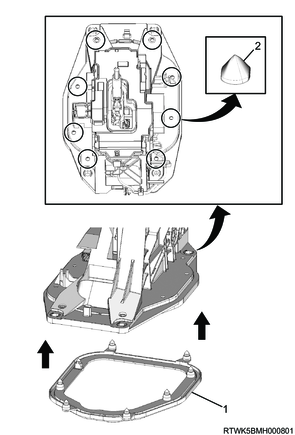

5) Install the selector lever seal to the shift lever plate sub-assembly.

Note

  • Be sure to check that all the selector lever seal fixing points are completely fixed (the seal fixing head completely comes up from the selector lever seal fixing hole).

Legend

  1. Selector lever seal
  2. Seal fixing head

6) Install the cover terminal to the selector knob.

Legend

  1. Cover terminal

7) Install the clip to the selector knob.

Legend

  1. Clip
