Center pillar upper trim cover installation

Part name

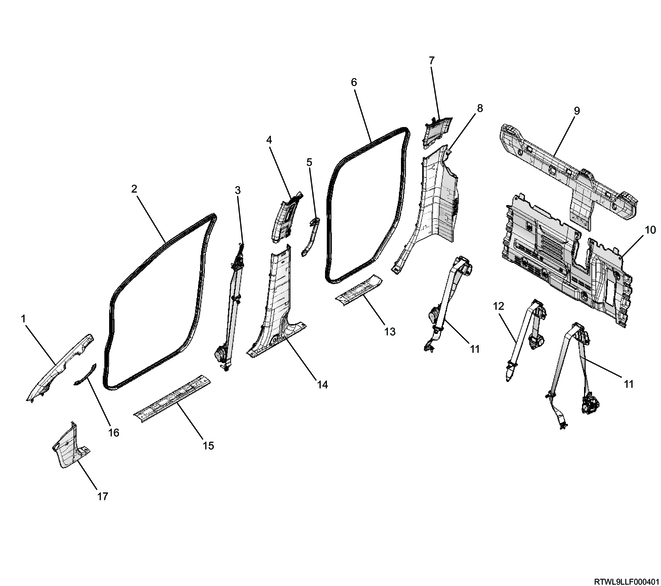

1) Install the center pillar upper trim cover to the center pillar.

Legend

Legend

2) Install the assist grip to the center pillar.

Tightening torque: 3.8 N・m { 0.39 kgf・m / 33.6 lb・in }

Legend

3) Install the seat belt upper anchor bolt to the center pillar.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

Legend

4) Install the adjuster cover to the seat belt upper anchor bolt.

1) Install the center pillar lower trim cover to the center pillar.

Legend

2) Install the seat belt lower anchor bolt to the center pillar.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

Legend

1) Install the rear door finisher to the body.

1) Install the rear sill plate to the floor.

Legend

1) Install the front door finisher to the body.

1) Install the front sill plate to the floor.

Legend
