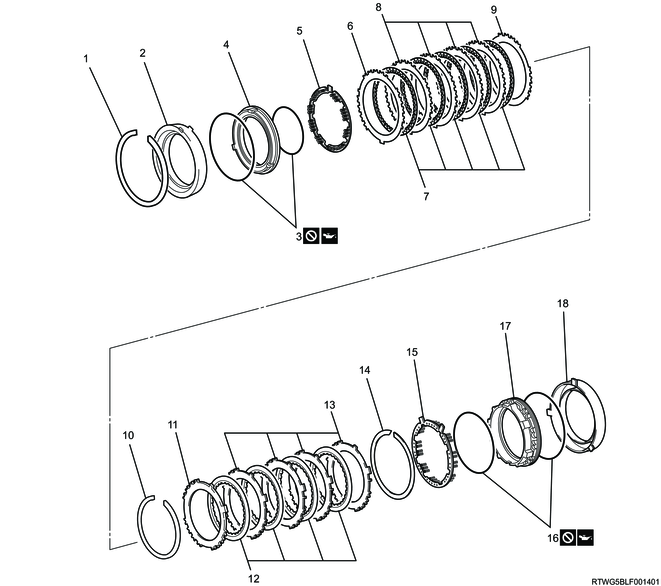

1. Component views
Brake disc No. 1, No. 2
Part name
- Snap ring
- Brake cylinder No.2
- O-ring
- Brake piston No. 2
- Brake piston return spring sub-assembly No. 2
- Brake flange No. 2
- Brake disc No. 2
- Brake plate No. 2
- Brake flange No. 2
- Snap ring
- Brake flange No. 1
- Brake disc No. 1
- Brake plate No. 1
- Snap ring
- Brake piston return spring sub-assembly No. 1
- O-ring
- Brake piston No. 1
- Brake cylinder No. 1
2. Brake piston No.1 reassembly
1) Coat the new 2 O-rings and brake piston No. 1 with ATF.
Caution
- Do not reuse the O-ring.
2) Install them to brake piston No. 1.
| Inner diameter |
Thickness |
| 119.6 mm { 4.7087 in } |
2.62 mm { 0.10 in } |
| 148.9 mm { 5.86 in } |
2.62 mm { 0.10 in } |
3) With brake piston return spring sub-assembly No. 1 installed to brake piston No. 1, align the 2 claws of brake piston return spring sub-assembly No. 1 with the 2 claws of brake cylinder No. 1, and then install brake piston No. 1 to brake cylinder No. 1.
