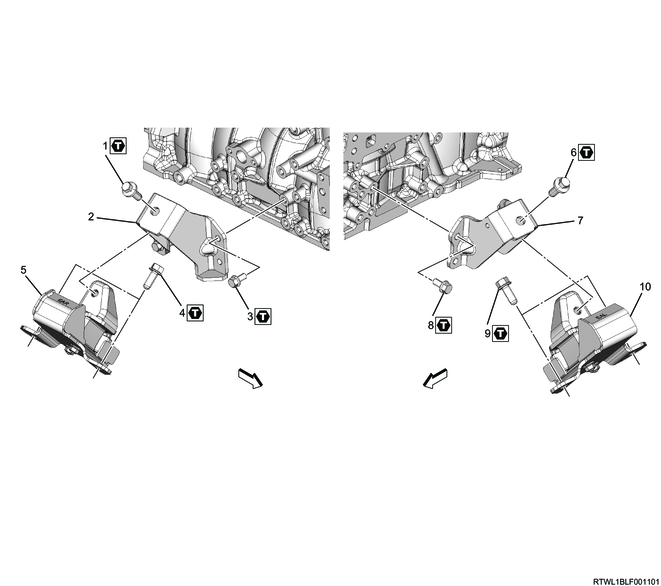

Engine mounting removal (RZ4E-TC)

Part name

Tightening torque

1: 131 N・m { 13.4 kgf・m / 97 lb・ft }

3: 52 N・m { 5.3 kgf・m / 38 lb・ft }

4: 116 N・m { 11.8 kgf・m / 86 lb・ft }

6: 131 N・m { 13.4 kgf・m / 97 lb・ft }

8: 52 N・m { 5.3 kgf・m / 38 lb・ft }

9: 116 N・m { 11.8 kgf・m / 86 lb・ft }

1. Preliminary procedures

1) Open the engine hood.

2) Disconnect the battery cable from the battery negative terminal.

3) Raise the vehicle.

Refer to "9.Body, Cab, Accessories 9G.Hood, Fenders, Doors underguard removal".

1) Open the engine hood.

2) Remove the hinge bolt from the engine hood.

Refer to "9.Body, Cab, Accessories 9B.Wiper, Washer Systems wiper linkage removal".

1) Remove the cowl panel from vehicle.

1) Install the special tool to the generator bracket.

SST: 5-8840-3226-0 - front engine hanger

Legend

2) Install special tool to the flywheel housing.

SST: 5-8840-3170-0 - rear engine hanger

Tightening torque: 25 N・m { 2.5 kgf・m / 18 lb・ft }

Legend

3) Install the wire to the engine hanger and the hoist.

4) Hold up the engine as high as not to be lifted up.

5) Disconnect the engine mounting from the engine foot.

Legend

6) Slightly raise the engine.

7) Loosen the fixing bolts between the engine mounting and the frame.

8) Remove the engine mounting from the frame.
