Rear case disassembly (MVL)

1. Component views

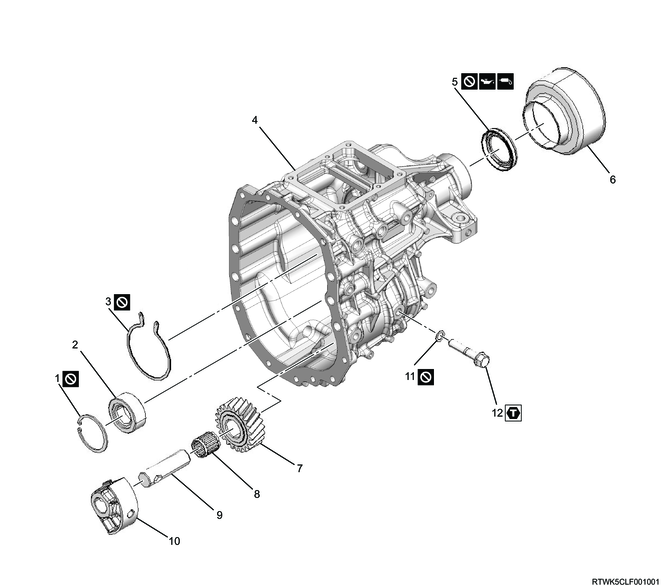

Rear case (2WD models)

Part name

  1. Counter shaft rear bearing snap ring
  2. Counter shaft rear bearing
  3. Main shaft rear bearing snap ring
  4. Rear case
  5. Rear oil seal
  6. Dust cover
  7. Reverse idle gear
  8. Needle bearing
  9. Reverse idle shaft
  10. Reverse idle shaft bracket
  11. Gasket
  12. Bolt

Tightening torque

12: 83 N・m { 8.5 kgf・m / 61 lb・ft }

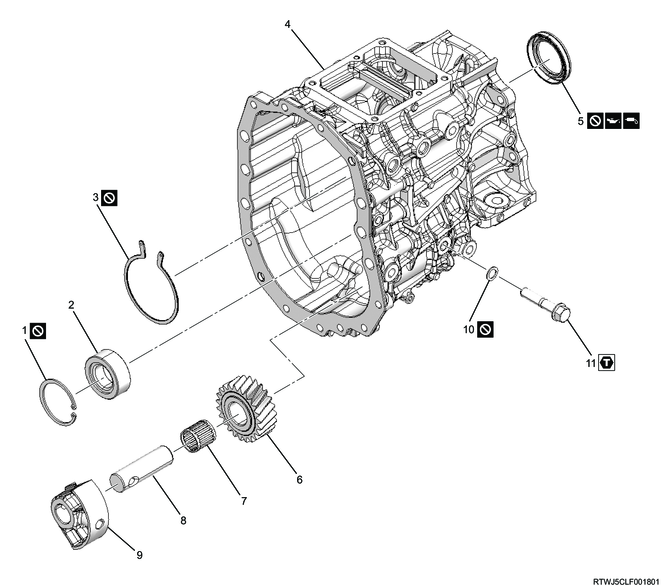

Rear case (4WD models)

Part name

  1. Counter shaft rear bearing snap ring
  2. Counter shaft rear bearing
  3. Main shaft rear bearing snap ring
  4. Rear case
  5. Rear oil seal
  6. Reverse idle gear
  7. Needle bearing
  8. Reverse idle shaft
  9. Reverse idle shaft bracket
  10. Gasket
  11. Bolt

Tightening torque

11: 83 N・m { 8.5 kgf・m / 61 lb・ft }

2. Rear oil seal removal

1. 2WD models

1) Remove the dust cover from the rear case.

2) Remove the rear oil seal from the rear case.

Legend

  1. Rear oil seal
  2. Dust cover

2. 4WD models

1) Remove the rear oil seal from the rear case.

Legend

  1. Rear oil seal

3. Rear case disassembly

1) Remove the reverse idle gear from the rear case.

Note

  • Remove the bolts and washers, and remove the following parts from the rear case.
  • Reverse idle shaft
  • Reverse idle shaft bracket
  • Needle bearing
  • Reverse idle gear

Legend

  1. Reverse idle shaft bracket
  2. Reverse idle shaft
  3. Needle bearing
  4. Reverse idle gear
  5. Gasket
  6. Bolt

2) Remove the counter shaft rear bearing snap ring from the rear case.

3) Remove the counter shaft rear bearing from the rear case.

4) Remove the main shaft rear bearing snap ring from the rear case.

Legend

  1. Counter shaft rear bearing snap ring
  2. Counter shaft rear bearing
  3. Main shaft rear bearing snap ring
