1. Component views

Instrument panel (High grade type)

Part name

  1. Ventilation duct
  2. Center ventilation duct
  3. Defroster nozzle
  4. Heater evaporator unit
  5. Reinforcement
  6. Instrument panel (Upper side)
  7. Antenna
  8. Passenger airbag
  9. Instrument panel (Lower side)
  10. Side cover
  11. Instrument panel driver-side lower cover
  12. Instrument panel cluster
  13. Meter cluster
  14. Steering upper cowl
  15. Steering lower cowl
  16. Instrument panel (Middle side)
  17. Center console
  18. Control panel
  19. Audio center unit
  20. Bezel
  21. Audio
  22. Glove box
  23. Instrument panel passenger-side lower cover
  24. Instrument panel passenger-side upper cover

Instrument panel (Low grade type)

Part name

  1. Ventilation duct
  2. Center ventilation duct
  3. Defroster nozzle
  4. Heater evaporator unit
  5. Reinforcement
  6. Instrument panel (Upper side)
  7. Passenger airbag
  8. Instrument panel (Lower side)
  9. Side cover
  10. Instrument panel driver-side lower cover
  11. Glove box
  12. Instrument panel passenger-side lower cover
  13. Instrument panel cluster
  14. Meter cluster
  15. Steering upper cowl
  16. Steering lower cowl
  17. Instrument panel (Middle side)
  18. Center console
  19. Control panel
  20. Bezel
  21. Instrument panel passenger-side upper cover

Regular cab

Part name

  1. Sun visor
  2. Sun visor cover
  3. Sun visor holder
  4. Dome light
  5. Assist grip
  6. Front pillar trim cover
  7. Hole cover
  8. Rear end upper trim cover
  9. Rear pillar upper trim cover
  10. Rear pillar lower trim cover
  11. Front sill plate

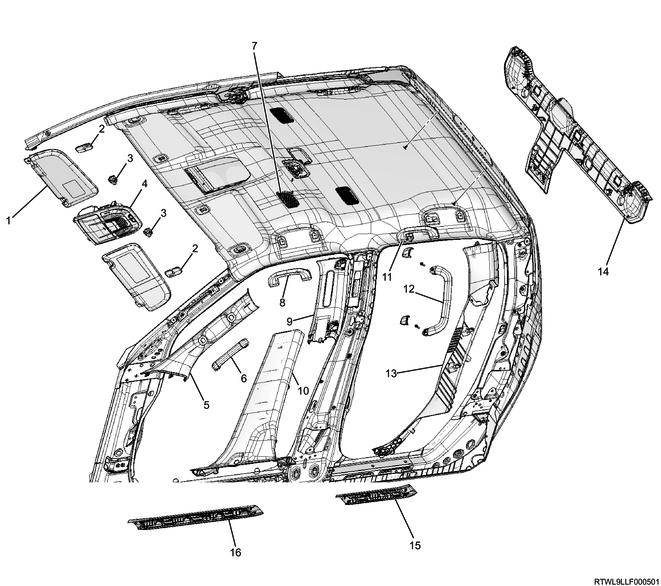

Crew cab

Part name

  1. Sun visor
  2. Sun visor cover
  3. Sun visor holder
  4. Map light
  5. Front pillar trim cover
  6. Assist grip
  7. Dome light
  8. Assist grip
  9. Center pillar upper trim cover
  10. Center pillar lower trim cover
  11. Assist grip with coat hook
  12. Assist grip
  13. Rear pillar trim cover
  14. Rear end upper trim cover
  15. Rear sill plate
  16. Front sill plate

Extend cab

Part name

  1. Sun visor
  2. Sun visor cover
  3. Sun visor holder
  4. Map light
  5. Dome light
  6. Assist grip
  7. Front pillar trim cover
  8. Assist grip
  9. Striker cover
  10. Rear pillar upper trim cover
  11. Rear pillar lower trim cover
  12. Rear end trim cover
  13. Front sill plate

Regular cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Front tongue side seat belt
  4. Rear pillar upper trim cover
  5. Rear end upper trim cover
  6. Rear end trim cover
  7. Rear pillar lower trim cover
  8. Front sill plate
  9. Dash side trim pad

Crew cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Front tongue side seat belt
  4. Center pillar upper trim cover
  5. Assist grip
  6. Rear door finisher
  7. Rear upper trim cover
  8. Rear lower trim cover
  9. Rear end upper trim cover
  10. Rear end trim cover
  11. Rear tongue side seat belt
  12. Rear tongue side center seat belt
  13. Rear sill plate
  14. Center pillar lower trim cover
  15. Front sill plate
  16. Assist grip
  17. Dash side trim pad

Extend cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Rear tongue side seat belt
  4. Rear pillar upper trim cover
  5. Rear end trim cover
  6. Rear pillar lower trim cover
  7. Front sill plate
  8. Assist grip
  9. Dash side trim pad
