backlight glass installation

1. Component views

Backlight glass

Part name

1) Clean the backlight glass using alcohol.

2) Clean the body panel using alcohol.

3) Install the retainer to the body panel flange.

Note

Legend

Dimensions

a. 0 - 2 mm {0 - 0.08 in}

b. 4 mm {0.16 in}

4) Apply the primer to the backlight glass.

Note

Apply Sunstar GP-402 or equivalent to the bonding surface of the backlight glass side.

5) After applying the primer, leave it for at least 1 minute for air drying.

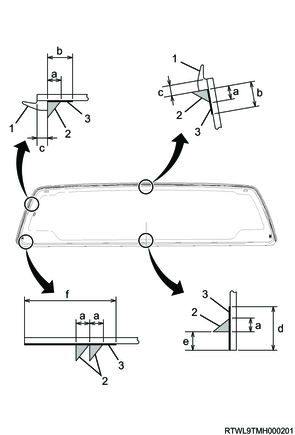

6) Apply the sealing agent to the backlight glass.

Caution

If an air gun is used, use an air pressure that is less than or equal to the specified value.

Specified air pressure: 147 to 294 kPa {1.5 to 3.0 kgf/cm2 / 21 to 43 psi} or less

Legend

Dimensions

a. 8 mm {0.31 in}

b. 14 mm {0.55 in}

c. 6.5 mm {0.26 in}

d. 24 mm {0.94 in}

e. 10 mm {0.39 in}

f. 43 mm {1.69 in}

Note

Apply the sealing agent so that it forms a bonding area of 20 mm {0.79 in} at the lower right section of the backlight glass.

Legend

Dimensions

a. Sealing agent bonding area: 20 mm {0.79 in}

7) Install the backlight glass to the panel.

Caution

Legend

8) For models with rear defogger, connect the rear defogger connector to the backlight glass.
