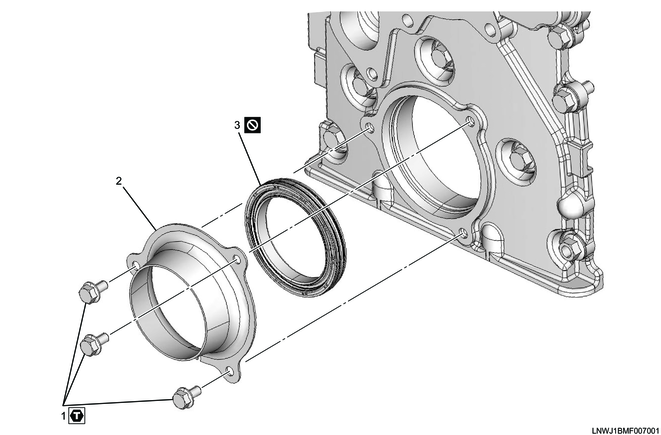

1. Component views
Crankshaft front oil seal
Part name
- Bolt
- Oil seal cover
- Crankshaft front oil seal
Tightening torque
1: 10.0 N・m { 1.0 kgf・m / 89 lb・in }
2. Crankshaft pulley removal
3. Crankshaft front oil seal removal
1) Remove the oil seal cover from the front cover.
2) Remove the crankshaft front oil seal and slinger as a set from the crankshaft using the special tool.
Caution
- Do not reuse the crankshaft front oil seal.
- Do not damage the oil seal installation surface of the crankshaft and front cover.
SST: 5-8840-3175-0 - slinger puller
