1. Component views

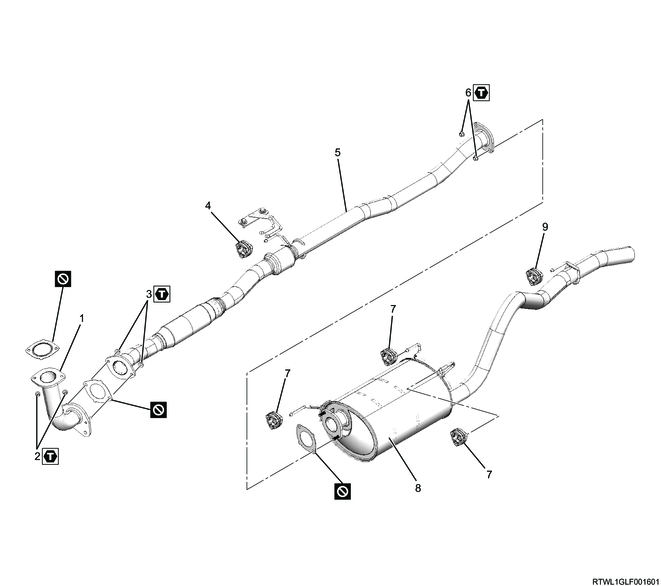

Exhaust pipe (Euro4 specifications)

Part name

  1. Front exhaust pipe A
  2. Nut
  3. Nut
  4. Front hanger rubber
  5. Front exhaust pipe B
  6. Nut
  7. Silencer hanger rubber
  8. Exhaust silencer
  9. Rear hanger rubber

Tightening torque

2: 67 N・m { 6.8 kgf・m / 49 lb・ft }

3: 43 N・m { 4.4 kgf・m / 32 lb・ft }

6: 43 N・m { 4.4 kgf・m / 32 lb・ft }

Exhaust pipe (Except Euro4 specifications)

Part name

  1. Front exhaust pipe A
  2. Nut
  3. Nut
  4. Front hanger rubber
  5. Front exhaust pipe B
  6. Nut
  7. Silencer hanger rubber
  8. Exhaust silencer
  9. Rear hanger rubber

Tightening torque

2: 67 N・m { 6.8 kgf・m / 49 lb・ft }

3: 43 N・m { 4.4 kgf・m / 32 lb・ft }

6: 43 N・m { 4.4 kgf・m / 32 lb・ft }
