Cylinder head cover removal (RZ4E-TC)

Part name

Tightening torque

4: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

10: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

Refer to "1.Engine 1C.Fuel System(RZ4E-TC) injector removal".

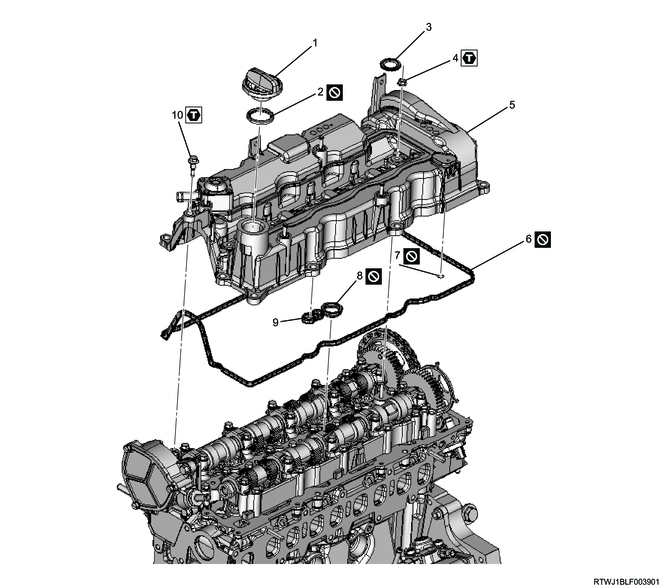

1) Disconnect the blow-by hose from the cylinder head cover.

2) Disconnect the harness clip from the cylinder head cover.

3) Remove the cylinder head cover and gasket from the cylinder head.

4) Remove the oil seal from the cylinder head cover.
