Oil cooler installation (RZ4E-TC)

Part name

Tightening torque

2: 12 N・m { 1.2 kgf・m / 106 lb・in }

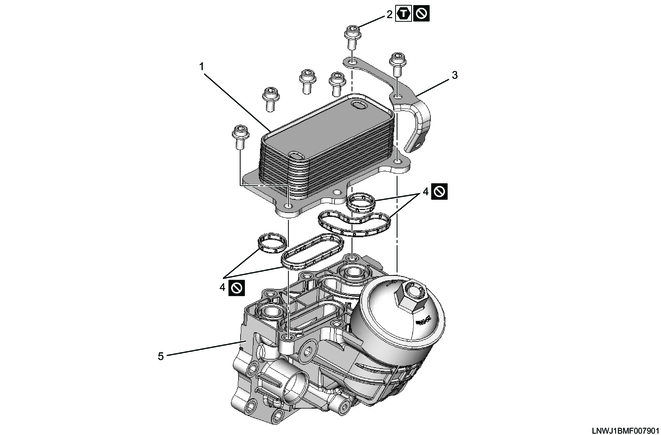

1) Install the oil cooler to the oil filter in the order shown in the diagram.

Tightening torque: 12 N・m { 1.2 kgf・m / 106 lb・in }

Legend

Refer to "1.Engine 1H.Aux. Emission Control Devices(RZ4E-TC) EGR installation".
