Crankshaft rear oil seal removal (RZ4E-TC)

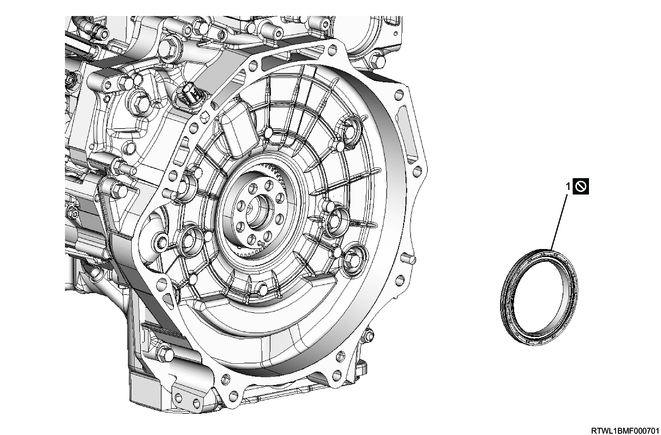

1. Component views

Crankshaft rear oil seal

Part name

  1. Crankshaft rear oil seal

2. Flywheel removal

Refer to "1.Engine 1B.Mechanical(RZ4E-TC) Flywheel removal".

3. Crankshaft rear oil seal removal

1) Remove the crankshaft rear oil seal and slinger from the crankshaft using the special tool.

Caution

  • Do not reuse the crankshaft rear oil seal.
  • Do not damage the oil seal installation surface of the crankshaft and flywheel housing.


SST: 5-8840-3177-0 - slinger puller
