Rear axle disassembly

1. Component views

Rear axle

Part name

  1. Brake drum
  2. Oil catcher
  3. Wheel pin
  4. Axle shaft
  5. Bolt
  6. Rear drum brake
  7. Hub outer oil seal
  8. Bearing holder
  9. double taper roller bearing
  10. Exciter ring or retainer
  11. Shim
  12. Snap ring
  13. Rear axle shaft and rear drum brake
  14. axle case oil seal
  15. Nut
  16. Drain plug
  17. Gasket
  18. Filler plug
  19. Gasket
  20. Rear axle case
  21. Rear differential
  22. Bolt
  23. Nut

Tightening torque

15: 122 N・m { 12.4 kgf・m / 90 lb・ft }

16: 78 N・m { 8.0 kgf・m / 58 lb・ft }

18: 78 N・m { 8.0 kgf・m / 58 lb・ft }

22: 73 N・m { 7.4 kgf・m / 54 lb・ft }

23: 64 N・m { 6.5 kgf・m / 47 lb・ft }

2. Rear axle shaft removal

1) Remove the rear axle shaft from the rear axle.

Note

  • Remove together with the following parts.
  • Bearing holder
  • Back plate
  • Oil catcher

2) Remove the axle case oil seal from the rear axle case.

Caution

  • Do not reuse the axle case oil seal.
  • Because the axle case oil seal is damaged when the rear axle shaft is removed, replace the axle case oil seal.

3. Rear axle shaft disassembly

1. ABS specifications

1) Install the special tool to the rear axle shaft.


SST: 5-8840-2831-0 - axle shaft bearing remover

Legend

  1. 5-8840-2831-0

2) Remove the following parts from the rear axle shaft using a press.

  • double taper roller bearing
  • Oil seal
  • Bearing holder
  • Back plate

Caution

  • Do not reuse the following parts.
  • double taper roller bearing
  • Snap ring

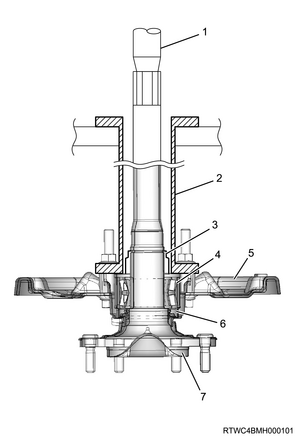

Legend

  1. Press fitting
  2. Bearing remover
  3. Exciter ring
  4. double taper roller bearing
  5. Back plate
  6. Oil seal
  7. Rear axle shaft

3) Remove the hub outer oil seal from the bearing holder.

4) Remove the double taper roller bearing outer race from the bearing holder.

Note

  • If the double taper roller bearing outer race cannot be removed by hand, use the special tool for removal.


SST: 5-8840-2119-0 - installer: inner bearing


SST: 5-8840-0007-0 - grip

Legend

  1. 5-8840-2119-0
  2. 5-8840-0007-0

5) Remove the wheel pin from the rear axle shaft using the special tool.


SST: 5-8840-0079-0 - wheel pin remover

Legend

  1. 5-8840-0079-0

6) Remove the oil catcher from the rear axle shaft.

Legend

  1. Rear axle shaft
  2. Oil catcher

2. Except ABS specifications

1) Remove the snap ring from the rear axle shaft using snap ring pliers.

Caution

  • Do not reuse the snap ring.

2) Remove the shim from the rear axle shaft.

Note

  • If any shims are installed, remove them.

3) Grind the retainer surface using a grinder.

4) Remove the retainer from the rear axle shaft using a chisel.

Caution

  • Do not reuse the retainer.

5) Install the special tool to the rear axle shaft.


SST: 5-8840-2831-0 - axle shaft bearing remover

Legend

  1. 5-8840-2831-0

6) Remove the following parts from the rear axle shaft using a press.

  • double taper roller bearing
  • Oil seal
  • Bearing holder
  • Back plate

Caution

  • Do not reuse the following parts.
  • double taper roller bearing
  • Snap ring

Legend

  1. Press fitting
  2. Bearing remover
  3. Retainer
  4. double taper roller bearing
  5. Back plate
  6. Oil seal
  7. Rear axle shaft

7) Remove the hub outer oil seal from the bearing holder.

8) Remove the double taper roller bearing outer race from the bearing holder.

Note

  • If the double taper roller bearing outer race cannot be removed by hand, use the special tool for removal.


SST: 5-8840-2119-0 - installer: inner bearing


SST: 5-8840-0007-0 - grip

Legend

  1. 5-8840-2119-0
  2. 5-8840-0007-0

9) Remove the wheel pin from the rear axle shaft using the special tool.


SST: 5-8840-0079-0 - wheel pin remover

Legend

  1. 5-8840-0079-0

10) Remove the oil catcher from the rear axle shaft.

Legend

  1. Rear axle shaft
  2. Oil catcher

4. Final drive removal

1) Remove the final drive from the rear axle.
