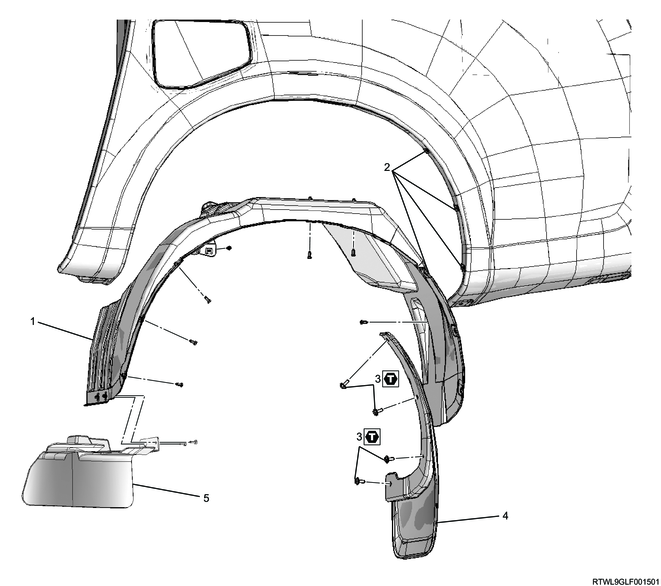

1. Component views
Rear mudguard
Part name
- Inner liner
- J-type nut
- Bolt
- Rear mudguard
- front flap
Tightening torque
3: 3.0 N・m { 0.3 kgf・m / 27 lb・in }
2. Rear mudguard removal
1) Remove the rear mudguard from the rear body.
3. Inner liner removal
1) Remove the inner liner from the rear body.
