Supplementary Information

1. Component views

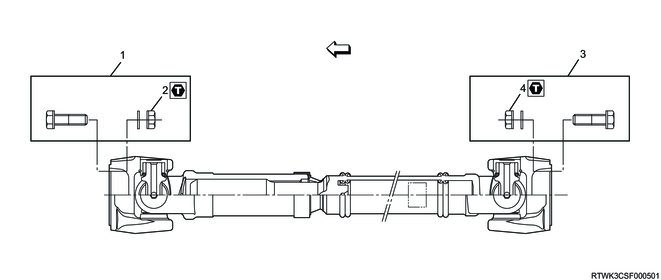

Front propeller shaft

Part name

  1. Bolt, nut, and washer (Front drive axle side)
  2. Nut
  3. Bolt, nut, and washer (Transfer side)
  4. Nut

Tightening torque

2: 59 N・m { 6.0 kgf・m / 44 lb・ft }

4: 59 N・m { 6.0 kgf・m / 44 lb・ft }

Front propeller shaft

Part name

  1. Sleeve yoke
  2. Seal
  3. Tube assembly

Front propeller shaft

Part name

  1. journal assembly
  2. Snap ring
  3. Flange yoke

Rear propeller shaft (Two-piece type)

Part name

  1. Spline yoke
  2. journal assembly
  3. 1st tube assembly
  4. Center bearing
  5. Plain washer
  6. center yoke
  7. Lock nut
  8. 2nd tube assembly
  9. Flange yoke
  10. Snap ring

Rear propeller shaft (Two-piece type)

Part name

  1. Bolt
  2. Nut
  3. Nut

Tightening torque

1: 69 N・m { 7.0 kgf・m / 51 lb・ft }

2: 118 N・m { 12.0 kgf・m / 87 lb・ft }

3: 103 N・m { 10.5 kgf・m / 76 lb・ft }

Rear propeller shaft (One-piece type)

Part name

  1. Spline yoke
  2. journal assembly
  3. Tube assembly
  4. Flange yoke
  5. Snap ring

Rear propeller shaft (One-piece type)

Part name

  1. Nut

Tightening torque

1: 103 N・m { 10.5 kgf・m / 76 lb・ft }

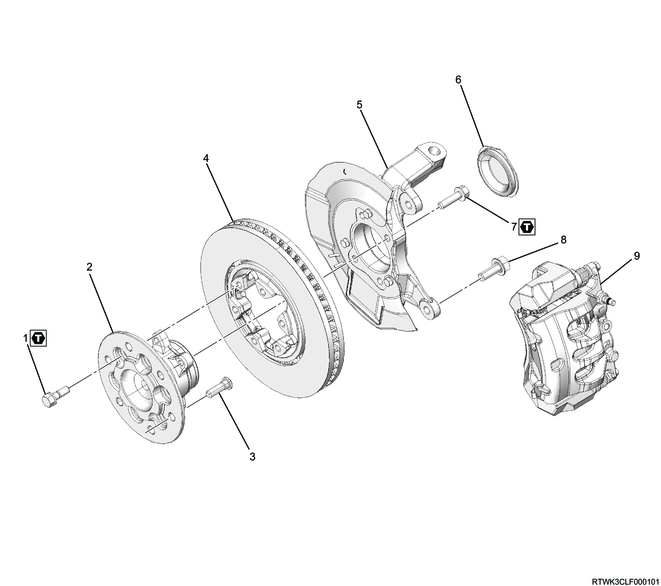

Front hub and disc rotor (2WD (Except high ride suspension specifications))

Part name

  1. Bolt
  2. Hub
  3. Wheel pin
  4. Brake disc
  5. Knuckle and dust cover
  6. Knuckle cap
  7. Bolt
  8. Bolt
  9. Brake caliper

Tightening torque

1: 93 to 113 N・m { 9.5 to 11.5 kgf・m / 69 to 83 lb・ft }

7: 85 N・m { 8.7 kgf・m / 63 lb・ft }

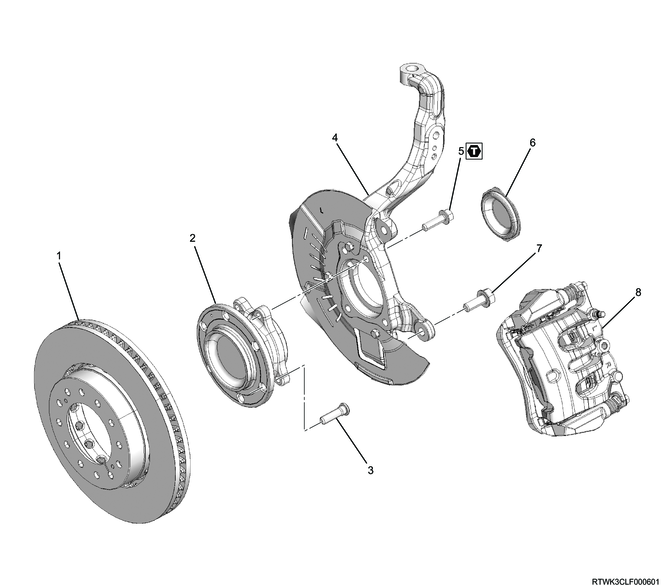

Front hub and disc rotor (2WD (High ride suspension specifications))

Part name

  1. Brake rotor
  2. Hub
  3. Wheel pin
  4. Knuckle and dust cover
  5. Bolt
  6. Knuckle cap
  7. Bolt
  8. Brake caliper

Tightening torque

5: 85 N・m { 8.7 kgf・m / 63 lb・ft }

Front hub and disc rotor (4WD)

Part name

  1. Brake disc
  2. Hub cap
  3. Cotter pin
  4. Lock nut
  5. Washer
  6. Hub
  7. Knuckle and dust cover
  8. Bolt
  9. Bolt
  10. Brake caliper
  11. Wheel pin

Tightening torque

4: 127 N・m { 13.0 kgf・m / 94 lb・ft }

8: 85 N・m { 8.7 kgf・m / 63 lb・ft }

Knuckle (2WD (Except high ride suspension specifications))

Part name

  1. Nut
  2. Knuckle
  3. Cotter pin
  4. Cotter pin
  5. Nut
  6. Nut
  7. Cotter pin
  8. Dust cover
  9. Wheel speed sensor harness
  10. Bolt

Tightening torque

1: 98 N・m { 10.0 kgf・m / 72 lb・ft }

5: 98 N・m { 10.0 kgf・m / 72 lb・ft }

6: 147 N・m { 15.0 kgf・m / 108 lb・ft }

10: 8 N・m { 0.8 kgf・m / 71 lb・in }

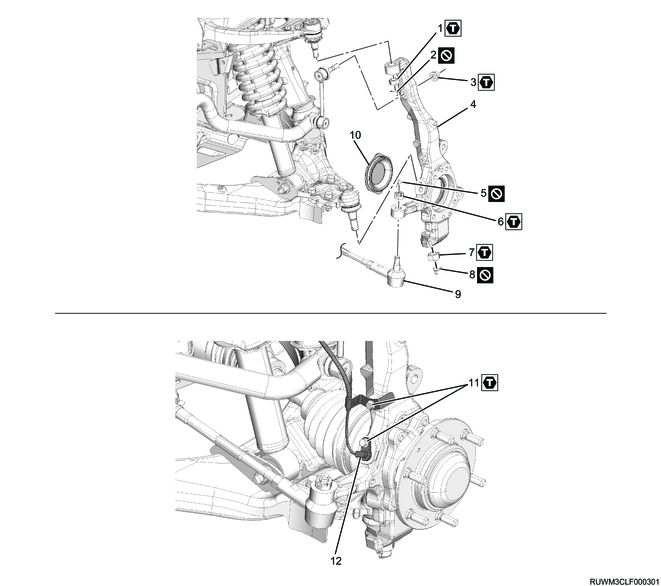

Knuckle (2WD (High ride suspension specifications))

Part name

  1. Nut
  2. Cotter pin
  3. Nut
  4. Knuckle
  5. Cotter pin
  6. Nut
  7. Nut
  8. Cotter pin
  9. Tie rod end
  10. Knuckle cap
  11. Bolt
  12. Front wheel speed sensor

Tightening torque

1: 98 N・m { 10.0 kgf・m / 72 lb・ft }

3: 97 N・m { 9.9 kgf・m / 72 lb・ft }

6: 98 N・m { 10.0 kgf・m / 72 lb・ft }

7: 147 N・m { 15.0 kgf・m / 108 lb・ft }

11: 8 N・m { 0.8 kgf・m / 71 lb・in }

Knuckle (4WD)

Part name

  1. Nut
  2. Cotter pin
  3. Nut
  4. Knuckle
  5. Cotter pin
  6. Nut
  7. Nut
  8. Cotter pin
  9. Tie rod end
  10. Oil seal
  11. Bolt
  12. Front wheel speed sensor

Tightening torque

1: 98 N・m { 10.0 kgf・m / 72 lb・ft }

3: 97 N・m { 9.9 kgf・m / 72 lb・ft }

6: 98 N・m { 10.0 kgf・m / 72 lb・ft }

7: 147 N・m { 15.0 kgf・m / 108 lb・ft }

11: 8 N・m { 0.8 kgf・m / 71 lb・in }

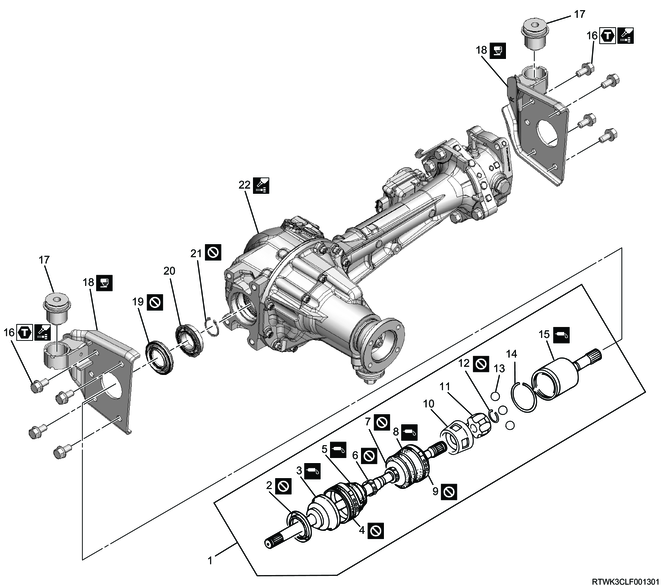

Front axle shaft

Part name

  1. Front axle shaft
  2. Dust seal
  3. Outside drive shaft
  4. Large boot band B
  5. Boot B
  6. Small boot band B
  7. Small boot band A
  8. Boot A
  9. Large boot band A
  10. Ball guide
  11. Ball retainer
  12. Snap ring
  13. Ball
  14. Circlip
  15. Inside drive shaft
  16. Bolt
  17. Bushing
  18. Axle mounting bracket
  19. Oil seal
  20. Bearing
  21. Snap ring
  22. Front axle case

Tightening torque

16: 88 N・m { 9.0 kgf・m / 65 lb・ft }

Shift-on-the-fly system

Part name

  1. Sleeve
  2. Clutch gear
  3. Needle bearing
  4. Inner drive shaft
  5. Snap ring
  6. Inner shaft bearing
  7. Snap ring
  8. Oil seal
  9. Bolt
  10. Gasket
  11. Filler plug
  12. Drain plug
  13. Filler plug
  14. Housing
  15. Shift-on-the-fly actuator
  16. Bolt
  17. Bolt
  18. Front axle shaft

Tightening torque

9: 75 N・m { 7.6 kgf・m / 55 lb・ft }

11: 50 N・m { 5.1 kgf・m / 37 lb・ft }

12: 50 N・m { 5.1 kgf・m / 37 lb・ft }

13: 50 N・m { 5.1 kgf・m / 37 lb・ft }

16: 9 N・m { 0.9 kgf・m / 80 lb・in }

17: 88 N・m { 9.0 kgf・m / 65 lb・ft }

Front drive axle

Part name

  1. Nut
  2. Front propeller shaft
  3. Nut
  4. Front drive axle
  5. Washer
  6. Mounting bolt
  7. Bolt
  8. Suspension cross member
  9. Mounting nut
  10. Knuckle and dust cover
  11. Tie rod end
  12. Front hub and front disc brake

Tightening torque

1: 59 N・m { 6.0 kgf・m / 44 lb・ft }

3: 59 N・m { 6.0 kgf・m / 44 lb・ft }

6: 169 N・m { 17.2 kgf・m / 125 lb・ft }

7: 26 N・m { 2.7 kgf・m / 19 lb・ft }

9: 167 N・m { 17.0 kgf・m / 123 lb・ft }

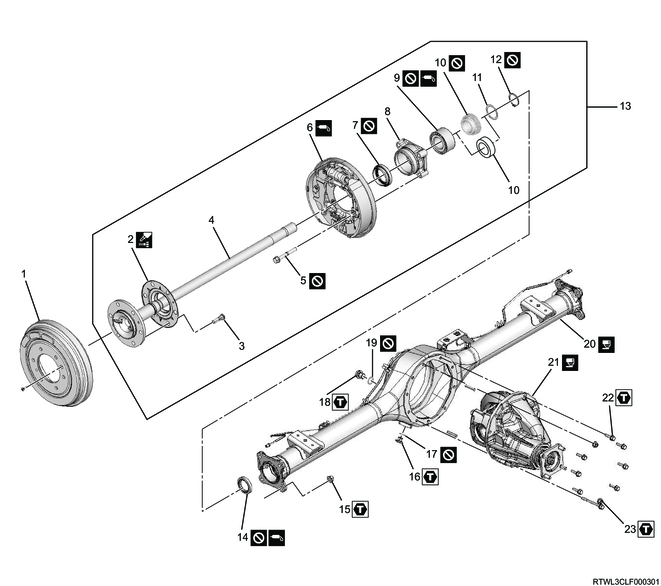

Rear axle

Part name

  1. Brake drum
  2. Oil catcher
  3. Wheel pin
  4. Axle shaft
  5. Bolt
  6. Rear drum brake
  7. Hub outer oil seal
  8. Bearing holder
  9. double taper roller bearing
  10. Exciter ring or retainer
  11. Shim
  12. Snap ring
  13. Rear axle shaft and rear drum brake
  14. axle case oil seal
  15. Nut
  16. Drain plug
  17. Gasket
  18. Filler plug
  19. Gasket
  20. Rear axle case
  21. Rear differential
  22. Bolt
  23. Nut

Tightening torque

15: 122 N・m { 12.4 kgf・m / 90 lb・ft }

16: 78 N・m { 8.0 kgf・m / 58 lb・ft }

18: 78 N・m { 8.0 kgf・m / 58 lb・ft }

22: 73 N・m { 7.4 kgf・m / 54 lb・ft }

23: 64 N・m { 6.5 kgf・m / 47 lb・ft }

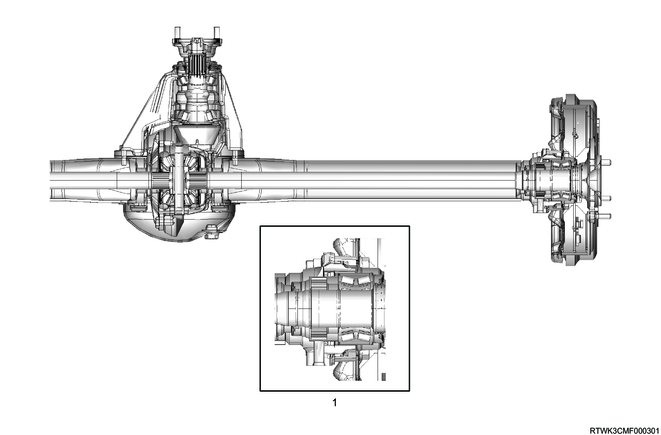

Rear axle

Part name

  1. ABS specifications
