Supplementary Information

1. Component views

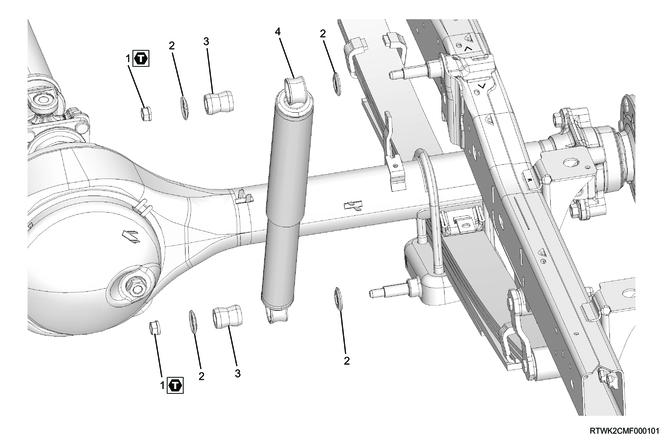

Shock absorber (2WD (Except high ride suspension specification))

Part name

Tightening torque

1: 39 N・m { 4.0 kgf・m / 29 lb・ft }

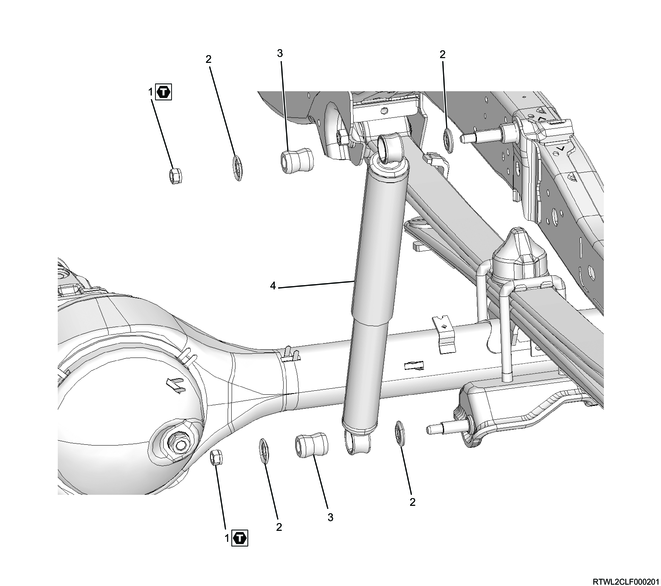

Shock absorber (2WD (High ride suspension specification), 4WD)

Part name

Tightening torque

1: 39 N・m { 4.0 kgf・m / 29 lb・ft }

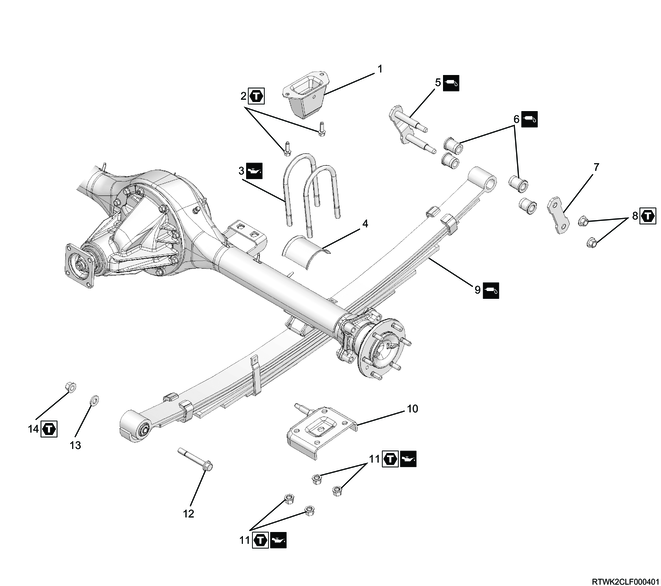

Leaf spring assembly (2WD (Except high ride suspension specification))

Part name

Tightening torque

2: 56 N・m { 5.7 kgf・m / 41 lb・ft }

8: 98 N・m { 10.0 kgf・m / 72 lb・ft }

11: 78 N・m { 8.0 kgf・m / 58 lb・ft }

14: 175 N・m { 17.8 kgf・m / 129 lb・ft }

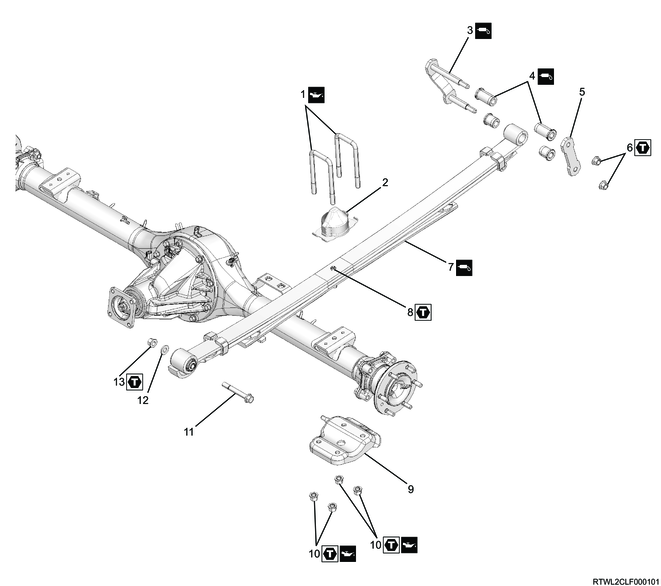

Leaf spring assembly (2WD (High ride suspension specification), 4WD)

Part name

Tightening torque

6: 98 N・m { 10.0 kgf・m / 72 lb・ft }

8: 52 N・m { 5.3 kgf・m / 38 lb・ft }

10: 78 N・m { 8.0 kgf・m / 58 lb・ft }

13: 175 N・m { 17.8 kgf・m / 129 lb・ft }
