Side access panel reassembly

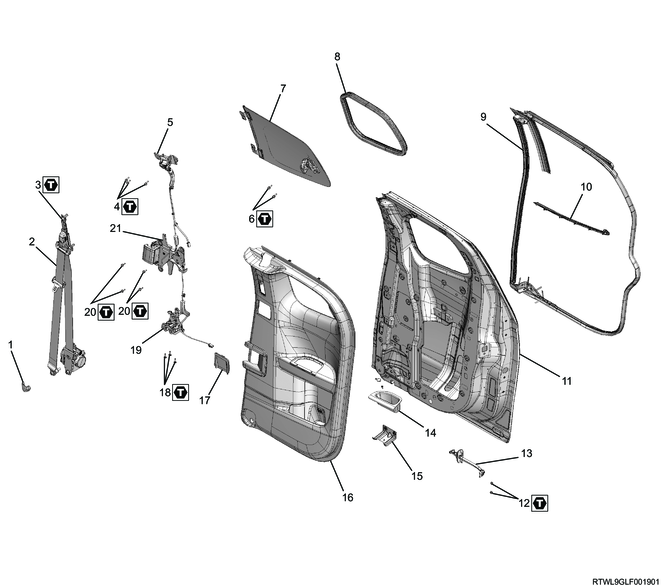

1. Component views

Side access panel

Part name

  1. Seat belt lower anchor cover
  2. Front tongue side seat belt
  3. Bolt
  4. Bolt
  5. Door lock (Upper)
  6. Bolt
  7. Quarter window glass
  8. Quarter window glass weather strip
  9. Weather strip
  10. Window molding
  11. Side access panel
  12. Nut
  13. Check arm
  14. Door pull case
  15. Bracket
  16. Door trim pad
  17. Door trim cover
  18. Torx screw
  19. Door lock (Lower)
  20. Bolt
  21. Inside handle

Tightening torque

3: 46 N・m { 4.7 kgf・m / 34 lb・ft }

4: 11 N・m { 1.1 kgf・m / 96 lb・in }

6: 8.9 N・m { 0.9 kgf・m / 79 lb・in }

12: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

18: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

20: 11 N・m { 1.1 kgf・m / 96 lb・in }

2. Door harness installation

1) Install the door harness to the side access panel.

3. Weather strip installation

1) Install the weather strip to the side access panel.

Legend

  1. Weather strip
  2. Side access panel
  3. Double-sided tape

4. Check arm installation

1) Install the check arm to the side access panel.

Caution

  • Install with the surface marked SL facing upward for the left side and the surface marked SR facing upward for the right side.

Tightening torque: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

5. Quarter window glass installation

1) Install the quarter window glass weather strip to the side access panel.

Note

  • Align the welded section of the quarter window glass weather strip with the notched section of the side access panel to install.

Legend

  1. Welded section of the quarter window glass weather strip
  2. Notched section

2) Install the window molding to the side access panel.

Legend

  1. Window molding
  2. Clip
  3. Side access panel

3) Install the quarter window glass to the side access panel.

Tightening torque: 2.0 N・m { 0.2 kgf・m / 18 lb・in }

Legend

  1. Quarter window glass
  2. Screw
  3. Clip

4) Install the hinge to the quarter window glass.

Tightening torque: 8.9 N・m { 0.9 kgf・m / 79 lb・in }

Legend

  1. Nut
  2. Hinge
  3. Bolt
  4. Screw

6. Door lock installation

1) Install the door lock (lower) to the side access panel.

Tightening torque: 6.9 N・m { 0.7 kgf・m / 61 lb・in }

2) Install the door lock (upper) to the side access panel.

Tightening torque: 11 N・m { 1.1 kgf・m / 97 lb・in }

Legend

  1. Door lock (Upper)
  2. Side access panel

3) Connect the harness to the door lock.

4) Install the inside handle to the side accelerator panel.

Tightening torque: 11 N・m { 1.1 kgf・m / 97 lb・in }

5) Connect the door lock cable to the inside handle.

Legend

  1. Inside handle
  2. Door lock cable (Upper)
  3. Door lock cable (Lower)

6) If the door lock (upper) and door lock (lower) are not simultaneously released when the inside door handle is pulled, open the clip lock of the door lock (lower) and adjust the door lock cable by moving it back or forth by approximately 3 teeth.

Legend

  1. Door lock (Lower)
  2. Door lock cable (Lower)
  3. Clip lock

7. Bracket installation

1) Install the bracket to the side access panel.

8. Front tongue side seat belt installation

1) Connect the connector to the pretensioner.

2) Install the front tongue side seat belt to the side access panel.

Tightening torque: 8.2 N・m { 0.8 kgf・m / 73 lb・in } Upper side bolt

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft } Lower side bolt

Legend

  1. Bolt
  2. Front tongue side seat belt

9. Door trim pad installation

1) Install the door trim pad to the side access panel.

Legend

  1. Clip position

2) Install the seat belt upper anchor bolt to the side access panel.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

Legend

  1. Adjuster cover
  2. Seat belt upper anchor bolt
  3. Door trim cover

3) Install the seat belt lower anchor bolt to the side access panel.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

Legend

  1. Seat belt lower anchor cover
  2. Seat belt lower anchor bolt

10. Door pull case installation

1) Install the door pull case to the side access panel.

Legend

  1. Cover
  2. Screw
  3. Door pull case

11. SRS airbag setting

1. SRS reactivation

Warning

  • Never use SRS parts from other vehicles or models.
  • Make sure to check the part numbers and use the SRS components intended for the target vehicle.

1) Set the ignition switch to LOCK and remove the key.

Note

  • For models with the passive entry and start system, turn the power mode OFF.

2) Make sure that the connectors of the SRS components (SRS airbag, SRS control unit, seat belt with pretensioner, SRS coil, etc.) are fully connected.

3) Install the SRS fuse to the fuse relay box, and connect the battery cable to the negative terminal of the battery.

4) Turn ON the ignition switch and verify that the SRS airbag warning light turns OFF after illuminating for 6 seconds.

Caution

  • If the SRS airbag warning light does not operate properly, perform Diagnostic system check - SRS controls.

5) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.

Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".
